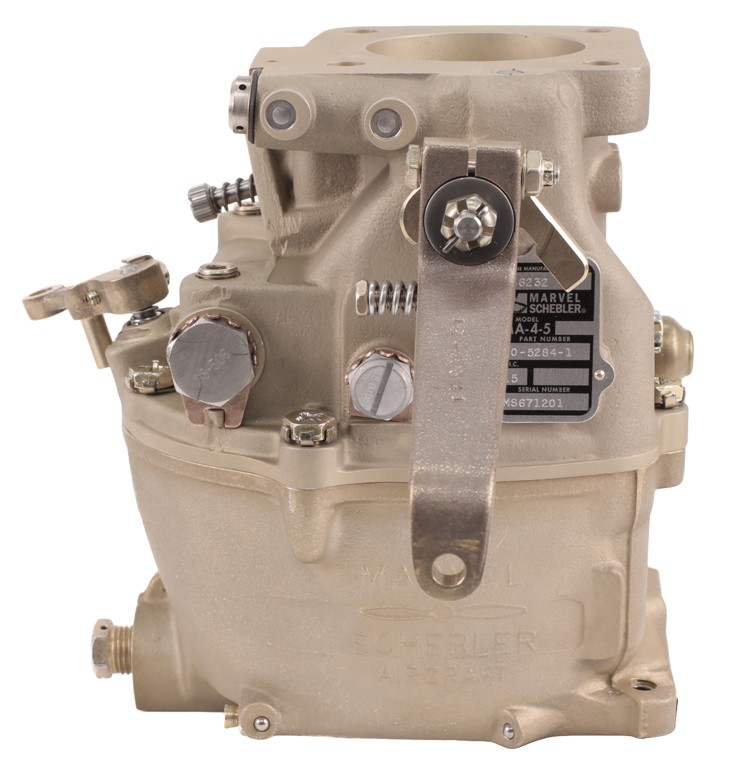

10-3965-12 Overhauled Marvel Schebler Carb

$1398.00/Each
+$600 Core Exchange Charge
Part# 10-03965-12
MFR Model# 10-3965-12-H
Part No.Carb. ModelO.E.M. PNOur Part No.
10-3965-12MA-4-553988310-03965-12

Overview

We offer a carburetor exchange program covering all popular Marvel Schebler/Facet general aviation carburetors. The carburetors are overhauled to the strictest industry standards and carry a full 1yr. warranty (from date of installation). Most carburetors are available from stock or within a week and are furnished complete with gaskets.

Due to the various configurations of carburetor installations, we suggest you retain your carburetor core until receiving the exchange unit. This will enable you to transfer all external fittings and installation hardware to the new exchange unit. All cores being returned for credit shall be, as removed from the engine, complete and not disassembled. A reduction in core credit is charged for missing or damaged parts.



BE CERTAIN ALL FUEL IS REMOVED FROM THE CORE.

*All prices shown are with factory acceptable exchange carburetor. Add core charge on all models (except MA-4-5, MA-4-5AA, MA-6AA, MH-A-6. These have core charge of ) to each price shown. Send exchange carburetor core to us. Upon factory approval of core, you will be refunded the core charge.BE CERTAIN ALL FUEL IS REMOVED FROM THE CORE. FRANKLIN ENGINE CARBURETORS ALSO AVAILABLE. ADVISE EXACT ENGINE AND CARBURETORS ALSO AVAILABLE. ADVISE ENGINE AND CARBURETOR MODEL NUMBERS AND REQUEST QUOTATION For Marvel Schebler Carburetor Piece Parts


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Carbs are great, excellent quality. Whatever you do, order BOTH gaskets. Got one today, had the wrong carb to intake gasket and no carb to heat box gasket. I had ordered the carb to heat box gasket cause the discription said the carb would come with the upper but a maybe on the lower. GUESS WHAT, it had been shipped with the wrong upper gasket! Called Marvel and they said the gaskets were a bonus so would not expedite a replacement. Carolyn @ Spruce steped up to a quick ship cause shes awesome. So a word to the wise! Also be sure you pull your studs for the heat box. And this little tool will make your life enjoyable cause if you try to use the 2 nut method, better order a 100 nuts! https://www.toolsid.com/performance-tool/1-4-1-2-stud-collet-extractor-mpn-w83203.html

Anthony T
March 4, 2020

Excellently pricing and speedy shipping. My mechanic said it was a perfect carb and works great!

John
December 25, 2018

Carb arrived quickly, but when installed by my A&P it did not allow sufficient fuel flow to the engine - CHTs and EGTs were hot upon take off, and max fuel rate on my C182 was 9 gall/hour which is VERY low (despite full rich mixture). Had to remove from engine, and send back for repairs. Overall this was costly and time consuming.

Courtney M Verified Purchase

10-3965-12 Overhauled Marvel Schebler Carb

June 9, 2024

I like the o/h carburetor and it performs really great on my C-140. But very disappointed you refused to exchange my Marvel core I sent in to Aircraft Spruce

Paul R
August 24, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the core carb have to be the same part number?

The core does have to be the same part number for full credit. The vendor may offer partial credit for a non-like core but it would depend on the part number of that core.

Q: What is the difference between a P/N 10-4895 and a P/N 10-4895-1?

The -1 shows compliance with service bulletin MSA-7, and indicates the carburetor is equipped with the fuel atomizing nozzle. The fuel atomizing nozzle is the most current design nozzle for the 10-4894-1 carburetor.

Q: Who does Aircraft Spruce use as their vendor to overhaul Marvel Carburetors?

The carburetors found on this page are overhauled by Tempest.

Q: Is a 10-4439 an acceptable core for an exchange 10-4895-1? Marvels website says this is the superseded p/n.

Yes, this is an acceptable core.

Q: Is 10-4893 an acceptable core exchange for 10-4893-1 ?

Yes, this will be an acceptable core exchange.
