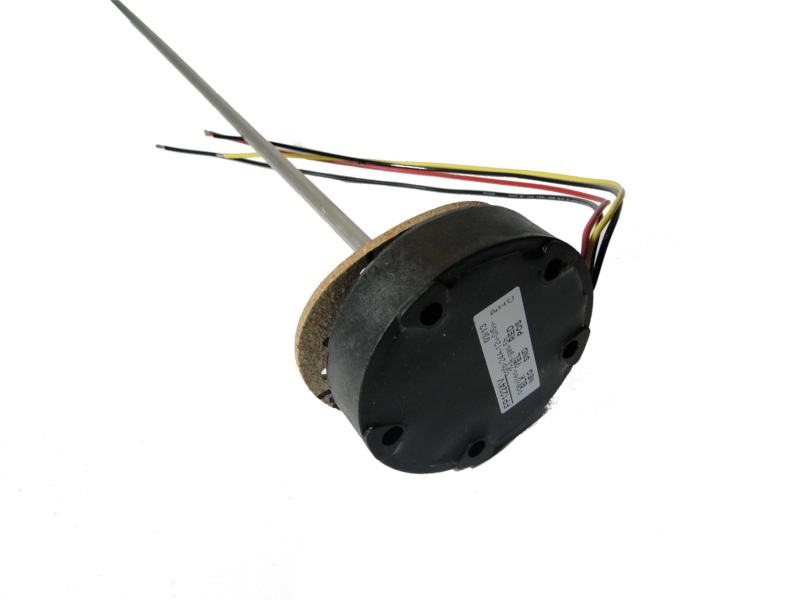

The probe is constructed of concentric tubing (a small tube inside a larger tube). The tubes, which are separated by small insulators to keep the tubes from touching, acts as a capacitor that has one value in air (empty tank) and changes in value as the fuel level rises inside the probe. The amplifier converts these values to a signal suitable to drive a standard meter or other display device. Can be manually calibrated. See Documents tab. 12-24 Volts 6,12, or 24 inches |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This probe has a standard SAE 5-hole bolt pattern, which most float type sensors have. Yes, it can be shortened down to half its length, so 17" would be no problem.
The top part of the sender above the seal has approximate height of 11/16".
2.6 inches
Yes, part # 10-03753 can be mounted to the bottom of the tank.
