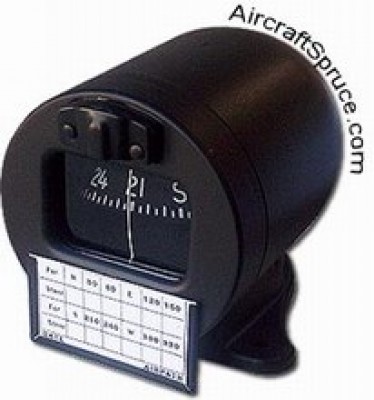

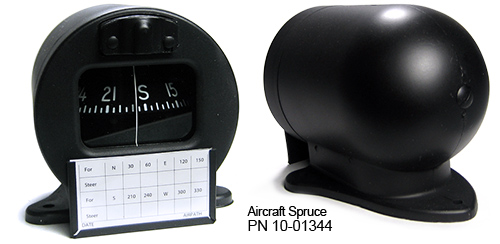

Airpath C2400 L4P Pedestal Compass Lit 12V North Hem TSO
MFR Model# C2400-L4P
FREE Shipping
Overview
|
All compasses in the C-2400 series meet FAA TSO-C7c requirements. Each has been specifically designed for installation either for streamline-type bracket housing or a pedestal-type housing. Wire lead length, voltage, and lighting color are specified under each stock number listed below. Each model is provided with mounting hardware, deviation card, deviation card window and either an attached cardholder, deviation plate, or standard unattached cardholder depending on the application. Factory new Airpath compass as used in almost all production aircraft. 2-1/4" |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- Markings: Black & White
- Leads: 2ft White Wire
- Lighting: Red 12 VDC
- Finish: Black
Reviews
Replaced a Precision vertical card compass that was erratic at best. Airpath came perfectly compensated, and required very minor tweaking once installed in the aircraft. If you purchase a $30 million business jet ... it comes with an old fashioned whiskey compass. Old Reliable!
Verified Purchase
Airpath C2400 L4P Pedestal Compass Lit 12V North Hem TSO
Excelent!!
Verified Purchase
Airpath C2400 L4P Pedestal Compass Lit 12V North Hem TSO
Always consistent product.
Verified Purchase
Airpath C2400 L4P Pedestal Compass Lit 12V North Hem TSO
I just installed a new Airpath Pedestal Mag Compass C2400 in my Beech Bonanza V-35. The Airpath is a good quality compass (replacement), at a reasonable price. The footing fit the same mounting as my previous compass, a huge benefit. I just swing calibrated the compass and the errors were no more than two degrees on five mag directions, the remaining seven were dead on. Aircraft Spruce delivered on time. I am pleased with the purchase and with the supplier. Thank you. SfP
It’s a compass. Wiring seems to be polarity sensitive but other than that...it’s compass.
Works well. My only complaint is how dim the illumination is at night. The 20 year old Airpath was much brighter.
Verified Purchase
Airpath C2400 L4P Pedestal Compass Lit 12V North Hem TSO
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
For 24V lighting you can use bulb pn:11-04015 or we can do a custom order if you wish.
Yes, these compasses are lighted.
These compasses are made in the USA.
Yes. The casing is included.
Per the MFG. All compasses are shipped pre-filled.
Per the manufacturer: the pedestal is a three hole pattern.
Yes, this comes with the housing and mounting screws.
For overhead compass installation please view 10-01345.
2-29/32 height x 3-45/64 length.
No it is not.
