Martin Fabric Clips Install Kit

$44.95/Each
Part# 09-19500

Overview

Used to secure fabric to metal ribs in wings and control surfaces. Replaces rib-stitch cord or P-K screws. Provides a more secure and streamlined installation. Drastically reduces covering time. FAA-approved for aircraft listed. Easily adapts to homebuilts with metal ribs. Spacing between clips, 3". Spacing may be reduced to 1-1/2" on high-performance aircraft by using two wires, with clips inserted in alternate holes that are spaced 1-1/2" apart. Fabricated from stainless steel wire.

No clips are included. Order separately part#: 09-19400

*If clips are used to secure fabric on controls, add 50 ft.

Aircraft Model STC No. Feet Req'd. Part Number
Aeronca-Champion SA150S0 225 09-19500
Piper -- All Models SA126S0 175-250 09-19600
Stinson SA615S0 175 09-19700
Taylorcraft

Orig. Equipment
225 09-19800


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

FAA Approved List

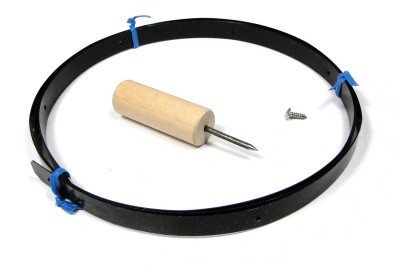

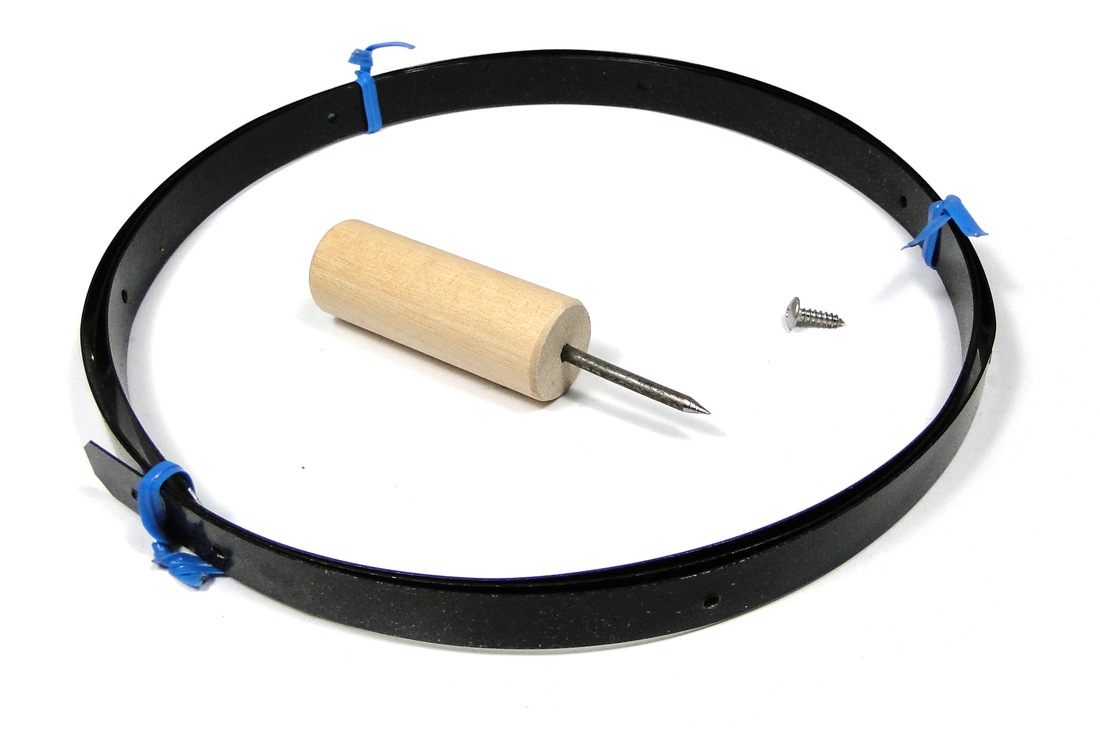

In The Box

  • STC SA126SO
  • Installation Instructions
  • Template
  • Screw
  • Punch

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
