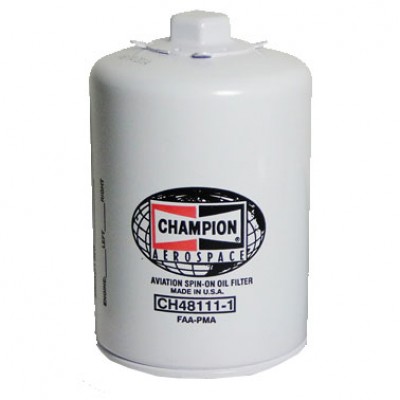

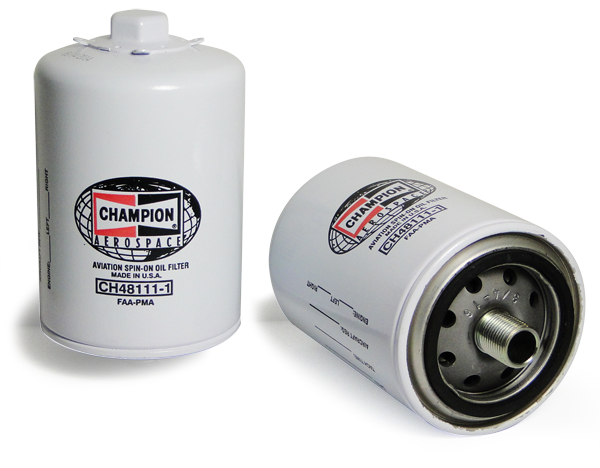

CH48111-1 Champion Oil Filter
FREE Shipping
Overview
|
Spin-On Oil Filter CH48111-1 by Champion. Replaces oil filter element. Easy to install. Saves time and clean-up. FAA Approved.
Customers told Champion Aerospace the height of a standard oil filter can make it difficult for them to install the filter in certain engine applications. So, operating on the premise that size really does matter, they made their Champion oil filter can 1/2" shorter and, in the process, added design improvements that now make their filters stronger and more effective than ever before. Champion Aerospace’s full-pleat, resin-impregnated micronic filter media traps all harmful particles, including metallic chips which result from abnormal engine wear. Because the oil flows through many layers of locked-in fibers, there is no migration of fiber material to clog engine oil passages or affect bearing surfaces. According to industry-approved tests, the Champion oil filter traps and holds more dirt and harmful particles during its normal operating time than any other similar filter. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Replacement elements service engine-mounted or line-installed filter systems incorporating a permanent housing assembly.
- All sizes of replacement elements are packed 12 per case of a single part number in heavy, re-shippable corrugated-board cartons
- Modern spin-on oil filters contain the element, incorporating the anti-drain back valve mechanism (and internal bypass valve 48108-1/48109-1), and are sealed in a disposable housing.
- All sizes of spin-on filters are packed 12 per case of a single part number in heavy, re-shippable corrugated-board cartons.
- Silicone impregnated filter gasket aids in future removal.
- Shorter stud length on CH 48110-1 for tight clearance applications.
- Heavy, corrugated steel center tube supports each convoluted pleat of the filter element and produces a substantially higher collapse-pressure rating, twice that of other similar filters.
- Maximum full-flow design, without interference from center-bolt oil filter assemblies, provides increased oil filtration each engine-operating hour.
Specifications
| Aircraft | Type |
|---|---|
| Beech | 65, 70, 80, 88, 880 |
| Cessna | 172P, 320A, 320B, C, 404, 411, S/N 127 forward, 421 A, B, C. 5 |
Documents
Reviews
I have in the past 40 years used Champion oil filters exclusively!
Verified Purchase
CH48111-1 Champion Oil Filter
Verified Purchase
CH48111-1 Champion Oil Filter
finc
Verified Purchase
CH48111-1 Champion Oil Filter
Verified Purchase
CH48111-1 Champion Oil Filter
Verified Purchase
CH48111-1 Champion Oil Filter
Verified Purchase
CH48111-1 Champion Oil Filter
Received in new condition, I only use champion oil filters for the last 30 years
Verified Purchase
CH48111-1 Champion Oil Filter
It was the proper filter for my airplane.
Verified Purchase
CH48111-1 Champion Oil Filter
Verified Purchase
CH48111-1 Champion Oil Filter
Verified Purchase
CH48111-1 Champion Oil Filter
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The 48111-1 is the longer version of the 48110-1. You can use the 48111 if the 48110-1 is not available however you must consider the length and whether it will fit in your aircraft.
25.4 mm/1 inch
