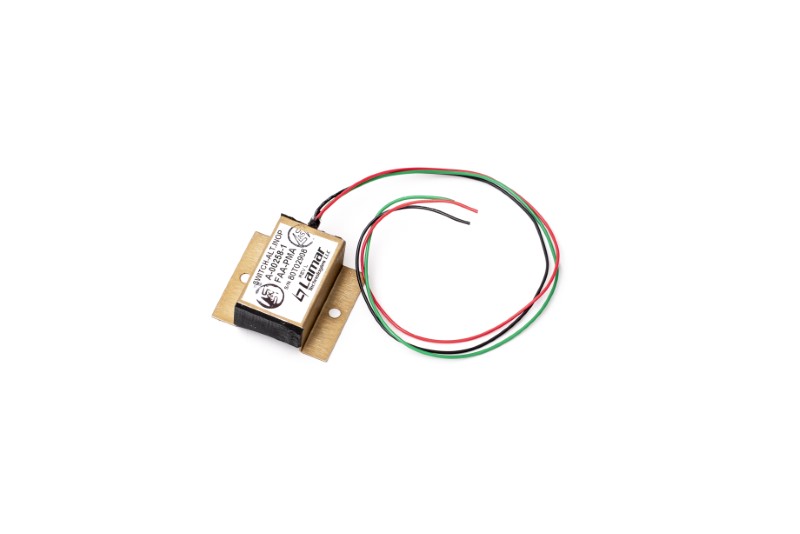

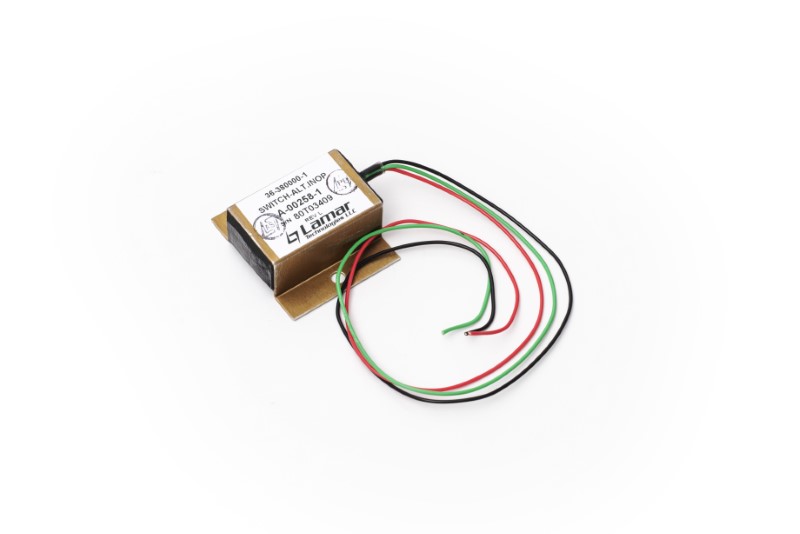

Lamar A-00258-1 Altimeter Inop Swtch
MFR Model# A-00258-1
FREE Shipping
- JUMP TO
- Overview
- Functions
- Reviews
- Q&A
- View in Catalog
| Lamar PN | Description | Applications | PN |
|---|---|---|---|
| A-00258-1 | Switch, Alternator INOP | Piper: PA23 Series, PA28 Series, PA30, PA32 Series, PA34 Series,PA34-200T, PA34-220T, Maule M4 Series, M6 Series, MT7 Series, MX7 Series, Hawker Beechcraft: E33 Series, G33, 35-A, B, C, H, J, K L, M, N, P, S, V Series, 36, A36, A36TC, B36TC | 07-01146 |
Overview
|
The Lamar MC10 is a master electrical control unit developed for 14V and 24V single engine experimental aircraft. It is designed to mount on the firewall or fuselage. It houses all the major electrical components except for the battery, starter, and alternator. The MC10 provides a greater degree of protection against moisture, dust and accidental electrical shorts along with the convenience of all the primary electrical components in one location. Features low installation cost, ease of installation and simplified troubleshooting and repair with several new performance and safety features.
* All astricked items are available through OEM only. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Functions
- Master (battery) (solenoid) control closing the master switch on pilot's panel connects the battery to the primary bus
- 3 aircraft bus outputs, protected via resetable circuit breakers
- Alternator Control; voltage regulation, overvoltage protection, field output over-load protection, alternator feeder fault protection
- Starter control (solenoid)
- Low voltage warning.(L model also includes overvoltage, over-current and reverse-current annunciation)
- Battery charge/ discharge ammeter drive (current shunt)
- Clock output (always-on) pro-tected with easily accesible external mounted fuse
- Ground power receptacle & control (solenoid) with reverse polarity protection
Reviews
Works great, super easy install. Note the pictured item doesnt represent the various listed voltage regulators.
Thought I wired it correctly, but it did not work. Will have to recheck my wiring... They need better installation instructions...
Verified Purchase
Lamar A-00258-1 Altimeter Inop Swtch
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The photo is a representative image. Some part #'s listed on this page may look different than the photo.
(1) year from receipt.
