Lord Mount J-7401-2

$79.75/Each
Part# 07-01145
MFR Model# J-7401-2
Mount No.ApplicationNo. Per A/CPart Number
J-7401-2Aviat S-1, S-1S, -2A
(Lyc. O-320, Lyc. O-360-B4A, A1P)
807-01145

Overview

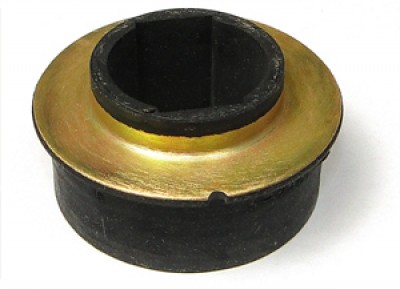

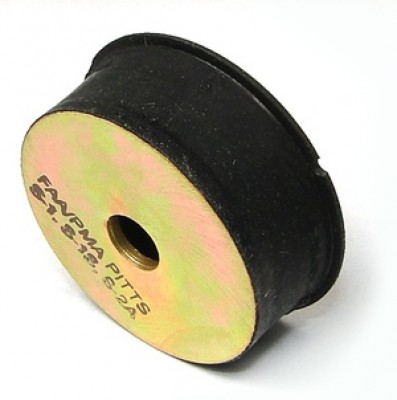

These compression type couplings consist of bonded rubber joints pressed into the sockets of metal hubs. These dynafocal engine suspensions provide proper flexible support to isolate engine vibrations and reduce noise transmission to airframe structure in all aircraft applications. Careful design assures maximum strength to hold the engine under ultimate load and emergency conditions.

Suspensions also distribute loads in most desirable patterns, control engine motions, accommodate thermal expansion and manufacturers’ tolerances.

Download Lord Engine Mount Application Guide

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Daryl P Verified Purchase

Lord Mount J-7401-2

October 23, 2024

Just wanted to note that I had an older airplane with VIP brand mounts and and no where I could find them . The VIP was #50401-8 . This Aircraft Spruce mount Is the replacement . Thanks AS !

Danny L Verified Purchase

Lord Mount J-7401-2

August 27, 2024

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the outside diameter of the Lord Engine Mount J-7401-2, your part number 07-01145?

The outside diameter of J-7401-2 is approximately 2-1/4" at the metal flange and 2" on the rubber portion.

Q: What is the diameter of the inner hole of the J-7401-2 (07-01145) engine mount?

There are two holes on the mount. The smaller hole is approx 7/16" ID, and the larger hole is approx 1-1/8" ID.

Q: If I buy J-7401-2, I will receive eight sets of parts?

No, they are sold individually. Quantity 8 units are required for a new installation.

Q: Does part # 08-00397 come with a bushing for the center of the cups (mounts)?

No, this is just one conical mount.
