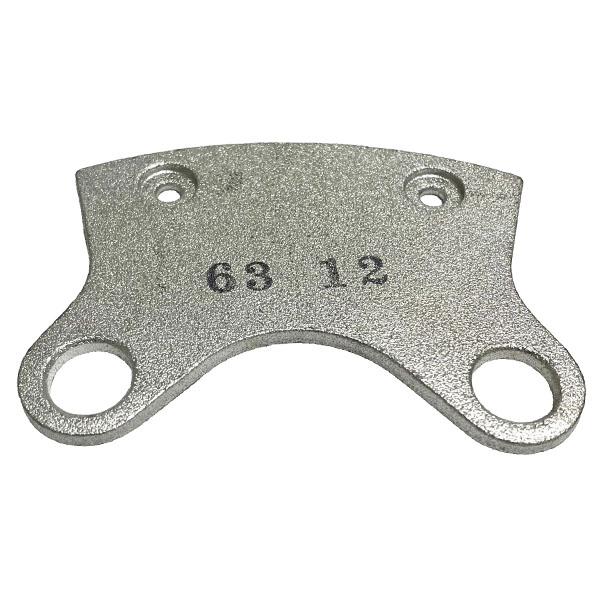

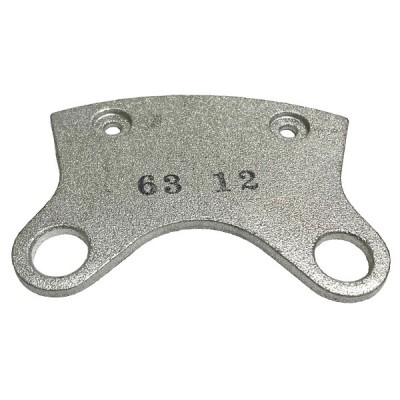

Cleveland Pressure Plate 063-01200

$169.85/Each
Part# 063-01200
MFR Model# 063-01200
Part NumberDescriptionImage No.
063-01200Cleveland Pressure Plate 063-01200Figure No. 4

Overview

Detailed image diagram and parts list for 30-55 brake assembly.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Not a bad price for brand new Cleveland parts.

Curtiss
February 1, 2021

Bought calipers and anchor bolts, already had orings and pads. Old calipers had mysteriously cracked believed to be due to over tightening bleeder valve on a previous repair. But no ones owning up to it. Anchor bolts are press fit so purchased just to be sure install went smooth. Took like 30 minutes to install and hour cleaning everything. Everything fit perfectly test flight today.

Joe I
January 12, 2021

The wheel cylinder castings were cracked at the brake line fitting on my 1968 Cessna 150. I looked into replacing just the cylinder casting, but it was not significantly less costly to buy verses buying the entire brake assembly. The Cleveland 30-63A brake assembly comes with everything I needed to renew the brakes on my airplane. It is a good value verses buying the individual parts, and is an exact replacement for my existing wheel brakes.

Gary S
October 24, 2020

Arrived early in excellent condition and fit perfectly and operated as advertised. Thanks again for another job well done.

Ron P
October 23, 2020

Perfect fit. Transferred the fittings and solved my bleeding issue.

Peter
October 19, 2020

in stock and received when needed

Flying D
December 15, 2019

With most pilots focused on things like speed, be it indicated, true, ground or even calibrated, often times the other side of the spectrum, stopping, is relegated to an afterthought. Ever since rolling off the runway during my ATP checkride, for which some mysterious reason earned me a pink slip, in spite of the fact that technically, other than exiting the plane in a field (saving hundreds of dollars in those pesky FBO parking fees) the landing was a huge success, Ive made it a personal commitment to firmly focus on the vital role effective dissapation of air speed plays in lining up the wheels with the white painted line at the tie down. These brake linings, while demure in size, have proven time and time again to be an integral piece of the aircraft ground controllability puzzle, and while I can vouch for more or less satisfactory results without having them installed, when its checkride day, and that FAA examiner has once again popped either a hip or knee cramming his ancient body into your equally as ancient aircraft, stack the deck in your favor by slapping a fresh pair of these fine stopping implements on either side of the round shiny metal ring connected to your wheel. Based on my own personal experience, Id even venture to say that doing so on both wheels might lead to even better results, but what do I know?

Sir S
March 24, 2019

Fit my M20K mooney perfectly

Scott
October 7, 2018

Received in a timely manner, installed and works good - last a long time. Very happy with Spruce.

Alex
July 31, 2018

The Cleveland 66-105 brake pads are a bit thicker than other replacement pads. They last a long time and are very effective.

Carl F
March 19, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is included in the complete brake assembly with the 30-63A?

The 30-63A brake assembly will come with everything pictured already assembled and ready for install. They are priced and sold individually.

Q: Do the 66-105 linings come with rivets?

Yes, part number 66-105 will come with rivets.

Q: What is the difference between the 30-63A and 30-63B Cleveland brake cylinder. My 68 cardinal has 30-63B clearly on the sticker on it.

Per the manufacturer: The only difference between the 2 brake assemblies: The 30-63A used on the Cessna 150s, 172s some, 182G - 182N, and others. The 30-63B: No usage listed on this assembly.

Q: Please identify the rivets, item number 6 and in the figure. Also, please identify the specifications and alternatives to these rivets. Also, the alternatives to the pads, item no.5.

The pads are 66-105. The alternatives to the Cleveland pads are Rapco and APS. The Rapco pads are RA66-105 and the APS pads are APS66-105 (Part# 07-20204). The rivets are Cleveland # 105-00200 and can be purchased under part # 05-11599, 06-00351 or 07-20100 (100 pack).

Q: Does the P/N 66-105 linings come with rivets? Or do you have to order separately?

Yes, the 66-105 linings will include the rivets. If you would like to order the pads only, use part # 66-105-1.

Q: What hydraulic fluid is used with these 30-63A brakes?

You, would use 5606 with these brakes.
