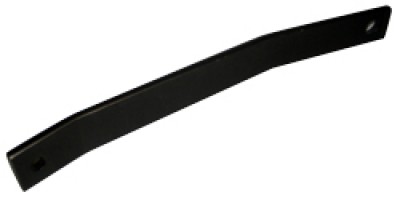

Tailwheel Leaf Sprg#10 U0542106

$174.85/Each
Part# 06-15100
MFR Model# U0542106
DescriptionPart Number
Tailwheel Main Leaf Spring #10 U0542106
Main Leaf Only
06-15100

Overview

Cessna C-170 Tailwheel Springs

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Perfect

Gerald L Verified Purchase

Tailwheel Leaf Sprg#10 U0542106

December 16, 2021

This is the only spring that I could find that was a good fit for my Junior Ace build.

Gary B
February 3, 2021

Worked perfect and arrived as promised.

Kenneth M
July 21, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the #9 Cessna 170 tail spring the whole set and the #10 just the main leaf?

Yes. P/N# 06-15000 is the whole set. P/N# 06-15100 is just the main leaf.

Q: How many leaf springs are in Part # 06-14200?

Part # 06-14200 has 3 leafs.

Q: What are the dimensions of the single leaf?

Length: 14" | Width: 2" | Thickness: 1/4"

Q: What is the diameter of the spring for homebuilts?

Part # 06-14500 Approx Dims: 1/4" thick, 5056 alloy
.262 thick, 1-1/2" wide
15" center to center, 16-7/8" overall length

Q: Will this work on a 1948 C-170?

Yes, this should work on your aircraft.

Q: What does part # 06-14500 weigh?

Approx 1.8 lbs.

Q: the Distance Between Bolt Spring centers for homebuilts. Is it in a straight line or the curve of the spring?

It is 13" center to center measured along the outside of the curve.

Q: Is this FAA PMA?

Yes it is FAA/PMA.

Q: What type of steel are the springs made from?

These are made of 5056A aluminum alloy. It does contain magnesium.
