- Photo may represent series and not specific product
- SHARE

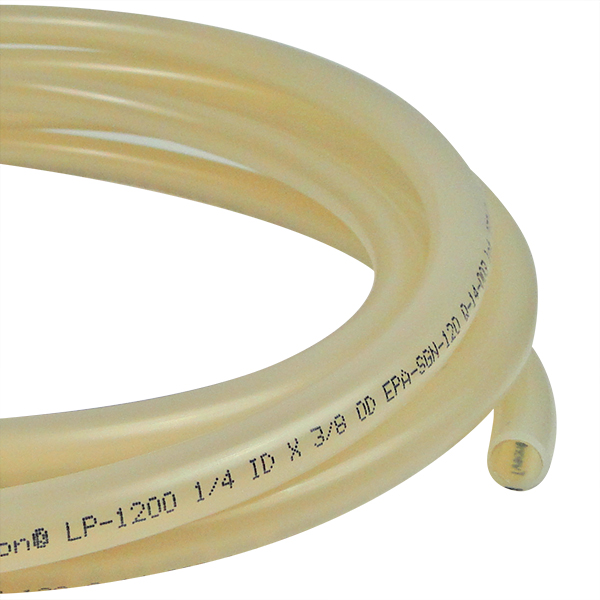

Tygon Lp-1200 Tubing 1/4 X 3/8 Fuel Line
MFR Model# 570.179078
FREE Shipping
- JUMP TO
- Overview
- Features
- Reviews
- Q&A
- View in Catalog
|
I.D. (in.) | O.D. (in.) | Wall Thickness. (in.) | Max. Working Pressure* (PSI) | PN |
|---|---|---|---|---|
| 1/4 | 3/8 | 1/16 | 30 | 05-15262 |
Overview
|
Color: Opaque Clear This high-performance fuel tubing is intended for use with small engines. Tygon® LP-1200 Low Permeation Fuel Tubing is specially designed to meet new EPA and CARB evaporative emission standards of 15g/m2/day. The patent-pending design and robust multi-layer construction offers superior fitting retention and resistance to swelling, hardening and cracking caused by hydrocarbon-based fluids |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Transparent - Easy to diagnose fuel flow or leak problems
- High purity fluoropolymer inner liner - Reduces the risk of fuel system fouling from extractable solids found in typical rubber products
- Superior fuel resistance and compatible with ethanol-enhanced fuels - Worry-free operation
- Excellent fitting retention - 100% seal for optimum safety
- Superior flexibility - Easy assembly, routing and optimized fuel pick-up
- Excellent elasticity - Prevents “necking” from over-stretching during installation
- UV resistant: Meets ANSI B175.1 Annex D Standard UV testing
- EPA and CARB approved
Reviews
I compared this new and very expensive fuel line to the old blue 1/4 fuel line. No visible difference other than colour. I expected some reinforcing fibers or thicker walls but no. I even did a melt test and no difference. No info on if it lasts longer or has better kink resistance. Is TYGON better than Urethane ? Who knows.
Verified Purchase
Tygon Lp-1200 Tubing 1/4 X 3/8 Fuel Line
Great quality , easy to see through.
Verified Purchase
Tygon Lp-1200 Tubing 1/4 X 3/8 Fuel Line
I ordered fuel line. I got fuel line. Perfect. Thank you!
I bought the Tygon LP-1200. The tubing is flexible enough for my application and Im quite happy with it. My order was filled remarkably fast and shipping was only a couple of days. Overall a great experience!
Ive found this product far superior to the vinyl fuel tubings available. The enhanced UV protection is a plus Very pleased!
Tygon is the best fuel line there is, period. Buying it from Aircraft Spruce means I never have to worry about sub-standard or fake fuel lines. Shipping and turnaround were superfast. Thank you!
Just what I was looking for!
Haven’t used the line yet but disappointed in the lack of flexibility compared to other Tygon fuel line I’ve used in the past. If you need to make short radius bends with the line it might not be appropriate.
Verified Purchase
Tygon Lp-1200 Tubing 1/4 X 3/8 Fuel Line
The tubes opacity requires time and attention to study the level through its wall. So I found it unsuitable to be used for an aircraft fuel sight gauge. I want tubing with better clarity.
Verified Purchase
Tygon Lp-1200 Tubing 1/4 X 3/8 Fuel Line
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
We carry the white/clear color.
Approx 0.05 lbs.
This tubing is commonly used with barb fittings.
