Breeze Clamp 300-188H

$7.50/Piece
Part# 05-14929
MFR Model# 300 188H
SAE SizeDescriptionMinMaxPN
188Breeze Clamp 300-188H9-3/8"12-1/4"05-14929

Overview

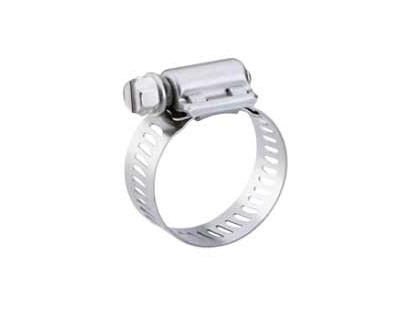

The original perforated stainless steel worm-gear clamp. Heavy duty four-piece Quadra-Lock construction enables far more tightening torque to be delivered to the band perforations. Use for aircraft and heavy-duty industrial applications.

9/16" (14.2 mm) band
5/16" (7.9 mm) slotted hex screw
Per SAE standard J1508 Type “F”

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the difference between the 200 series and the 300 series Breeze Aero-Seal Clamps? There is only one description. I tried the Breeze site but it was no help. I have had three out of four (#80) break right at the point the loose end goes into the screw assemble and they were not all that tight. Thanks.

The 200 series uses a 410 ss screw with a 300 ss band. The 300 series uses 300 ss for both.

Q: What is the width of the band (part # 05-14905)?

9/16" width
