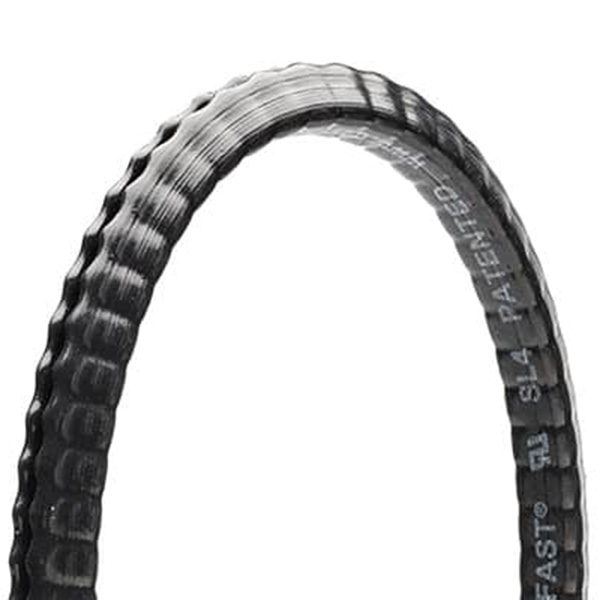

Grommet Edging SL4-0025-ER0201
MFR Model# SL4-0025-ER0201
FREE Shipping
| Description | Product Size | Inches Thickness | Inches Width | PN |
|---|---|---|---|---|
| Grommet Edging SL4-0025-ER0201 | 4 | 0.069 - 0.090 | 0.277 | 05-06545 |
Overview
|
Sold by the Ft. Spring-Fast® SL Series plastic trim has similar attributes of the "AP" and "BAP" Series grommet edging. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Substrate: Stainless Steel
- Color: Black
- Flammability rating: UL94 V-0
- RoHS Compliant
- DFARS Compliant
- Multi axis flexibility
- Heat continuous to 185ºF (85ºC)
- Low temperature to -40ºF (-40ºC)
- Indoor or outdoor use
- High gripping strength
- High corrosion resistance
- High dielectric strength
- High shock and vibration resistance per rms G 41.7
- Multi-axis flexibility for rounded inside and outside corners
- Continuous edge protections on flanged holes, 1/8" or greater inside radius and 1/4" or greater outside radius
Documents
- Specifications (PDF)
- Qualifications (PDF)
Videos
Reviews
Nice product. A little tricky to install on dished lightening holes under the panel, but holds on well. No chance of chafed wires with this.
High quality metal edge protection. Very flexible for those awkward radiuses.
Good product for edges of holes made in sheet metal. Difficult to attach around edges of smaller holes of 1 inch diameter. User should estimate the circumference of the hole according to diameter and cut the appropriate length. How much needed can be deceiving if just eye balling it.
