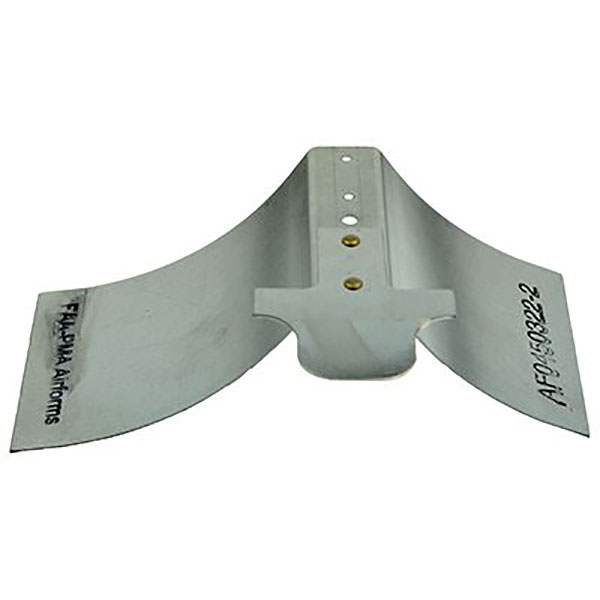

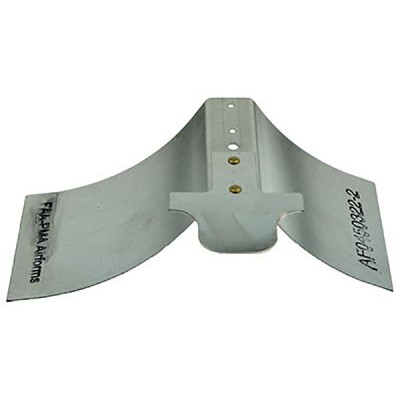

AF0450322-2 Baffle Component Bare

$56.75/Each
Part# 05-01484
MFR Model# AF0450322-2-BR

Overview

Engine Baffle Components for Cessna 170 (Years: 1949-52).

Airforms is the premier manufacturer of FAA-PMA replacement baffle components.

Individual components only with Black Seals and no Powder Coating.

Note:
  • If aftermarket components of differing dimensions have been installed, it is the installer's responsibility to adjust the baffles to fit. Components include: starters, alternators, exhaust, etc.
  • Mounting hardware is not included (nuts, bolts, screws, washers, retaining springs, and Tinnerman clips).

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Eligibility

  • S/N: C170A 18730 thru 20266
  • C170B 20267 thru 25372
  • FAA-PMA Approved
  • Engine: Continental C-145-2 or O-300

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What type of rivets are used in these Cessna 150 baffle set?

Per the supplier: It depends on what the rivets are for, but they are all hard rivets. They range from MS20426AD3-3 and MS20470AD3-3 to MS20470AD4-6 depending on where they are use and how many layers of material they go through. But they're all "AD" hard rivets.

Q: Do the individual pieces or the complete kits come with the support fasteners?

These baffle kits and pieces do not come with hardware.
