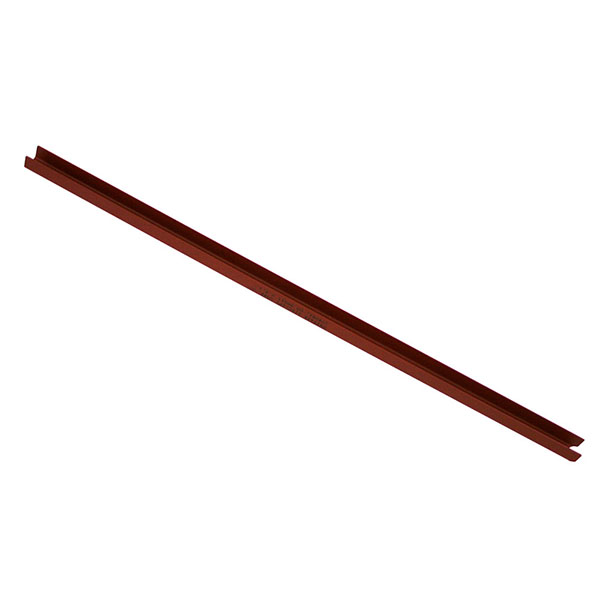

Aft Vertical Window Channel

$27.50/Each
Part# 05-00496
MFR Model# U12205-006

Overview

1-1/2 Axle, Cub Type; Weld On: No Longer Available. Must purchase new landing gear.

Firewall Bulkhead Repair Section P/N 05-00506 $20 Crate Fee

Tail Repair Section - 4' Without Jack Screw Tower P/N 05-00504
Tail Repair Section - 4' With Jack Screw Tower P/N 05-00505
$20 Crate Fee

Jack Screw Tower P/N 05-00503
$20 Crate Fee

Top Deck Superstructure P/N 05-00502
$30 Crate Fee

Heavy Duty 5/8 Lift Strut Fork P/N 05-00501
Rolled threads, stainless, heat treated.

Rear Stabilizer Attach Bracket P/N 05-00499
Tack welded; FAA-PMA

Front Torque Tube Support & Bearing P/N 05-00498
Weld on; FAA-PMA

Rear Torque Tube Support & Bearing P/N 05-00497
Weld on; FAA-PMA

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What does assembly part # 05-00533 consist of exactly?

This is the "T" shaped pedal only.
