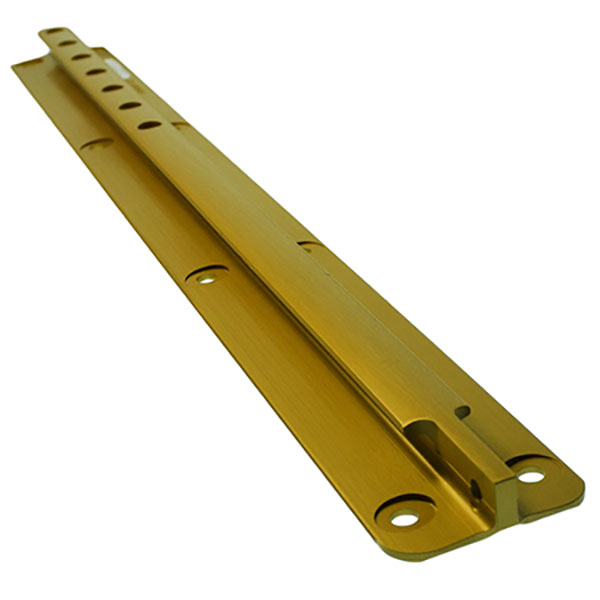

MC0410219-1 Seat Rail
MFR Model# MC0410219-1
FREE Shipping
- JUMP TO
- Overview
- Documents
- Reviews
- Q&A
- View in Catalog
| Description | Part Number |
|---|---|
| MC0410219-1 Seat Rail | 05-00327 |
Overview
|
These seat rails have only pilot holes drilled in the rail base allowing the installer to exactly match the aircraft floor rivet pattern. The manufacturer discovered while installing and developing our replacement seat rails that the seat rail attachment hole pattern was not consistant from aircraft to aircraft. Even small inconsistancies in the hole locations in the aircraft floor make installation of new seat rails very difficult. For this reason, all these seat rails have only a few smaller pilot attachment holes drilled at the factory. This allows the installer to precisely locate the attachment holes to match the holes in the aircraft floor. All special sized or machined attchment holes are factory machined to finish dimensions. It is necessary to install all required fasteners when seat rails are installed.
After studying countless worn and failed seat rails these rails were designed with 15% more metal in critical areas. The result is more crack resistant, durability, strength and longer life. Installation Tip: The aircraft floor is subject to corrosion from moisture under the seat rails, be sure to remove and treat any corrosion before installing the new seat rails. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Documents
Reviews
We actually liked the old ones better with the holes predrilled or at least guide holes. They say no pre drilled holes to misalign but we’ve never had any problems with the predrilled holes but without at least two holes oredrilled it would be very possible to misalign them and ruin the rail. Then they wouldn’t warranty that because they are not the ones who drilled the holes.
These are the wrong rollers. Returned for credit
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
These do not come with rivets or screws.
