(Hover to zoom | Use mouse wheel for +/-)

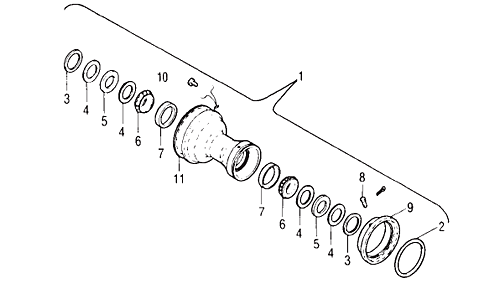

Figure No. |
PN | Description | Price | Buy |
---|---|---|---|---|
1 | 06-00941 | Wheel and Brake Drum Assembly | $1898.00 | |
2 | 06-00434 | Lock Ring, Side | $28.65 | |
3 | 06-00436 | Lock Ring, Felt Retainer | $728.00 | |
4 | 06-01046 | Felt, Retainer | $12.95 | |
5 | 06-01047 | Felt, Grease Retaining | $2.65 | |
6 | 084125 | Cone, Bearing | $86.90 | |
7 | 08231 | Cup, Bearing | $47.50 | |
9 | 06-00437 | Casting, Side | $64.75 | |
10 | 06-01041 | Rivet, Brake Drum | $1.25 | |
11 | 06-00432 | Drum, Brake (I.D. Must be turned after installation.) | $286.95 |
Goodrich 800x4 wheel for Piper |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Exceeded expectations
Timken Bearing 08231-20629 FAA-PMA
Pma!
Timken Bearing 08231-20629 FAA-PMA
Great
Timken Bearing 08231-20629 FAA-PMA
It was shiny.
Timken Bearing 08231-20629 FAA-PMA
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, this is for an 1-1/4" axle.
