Home / Landing Gear / Master Brake Cylinders / Cleveland /Cirrus Cleveland Brake Master Cylinder Upgrade/Repair Kit
Main Image

Cirrus Cleveland Brake Master Cylinder Upgrade/Repair Kit

0 Reviews 0 Answered Questions
$198.00/Each
Quantity
Add to Wishlist
Part# 05-27283
MFR Model# M-00-1003

Overview

Note: The Piston is not included in this kit.

The Marsh Brothers Aviation Cirrus (Aerostar/Mooney) Cleveland Brake Master Cylinder upgrade kit contains all of the hardware to repair/upgrade your Mooney Cleveland Brake Master Cylinder. Additionally, the kit also includes tooling to aid in the re-assembly. The piston rod seal (AeroLas™-Flex) provided is a Marsh Brothers Aviation proprietary lip seal design and is manufactured from a proprietary elastomeric polymer. The Marsh Brothers Aviation AeroLas™-Flex replaces both the OEM O-ring and rod wiper. The kit also includes installation instructions, instructions for continuing airworthiness and an authorized release certificate.
Caution:
Piston Rod Lip seal is made from Marsh Brothers proprietary material known as AeroLas™-Flex. AeroLas™-Flex is not compatible with phosphate ester hydraulic fluid, commercially known as Skydrol. Exposure to phosphate ester hydraulic fluid contamination will damage the seals.
Approved Models
Piper Aerostar Models Mooney Aircraft Corp. Cirrus Models
TCCA RDA No. C-RA22-016/D



 PA-60-600 M20 SR20
PA-60-601 M20A SR22
PA-60-601P M20B SR22T
PA60 602P M20C
PA60 700P M20D
M20E
M20F
M20G
M20J
M20K
M20L
M20M
M20R
M20S
M20TN
M20U
M20V

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • FAA, TCCA and EASA Approved
  • Eliminate the risks associated with typical failure modes of traditional O-rings in dynamic seal applications today.
  • Marsh Brothers' proprietary elastomeric polymer (lip seal) offers improved lower pressure sealing performance and overall cold weather performance.
  • Provides the ability to rebuild your brake master cylinder. No need to purchase a replacement cylinder.
  • Easy to install (Tooling included): Seal expansion bullet.
  • Long lasting.

Specifications

  • Applicable to OEM P/N 14269-001 (MFG P/N: 10-24C) series Brake Master Cylinder manufactured by Parker Aerospace (Cleveland Wheels & Brakes)
  • Approved for installation on Canadian, U.S.A. and European Registered aircraft, Approval Number C-RA22-016D (TCCA)

Documents

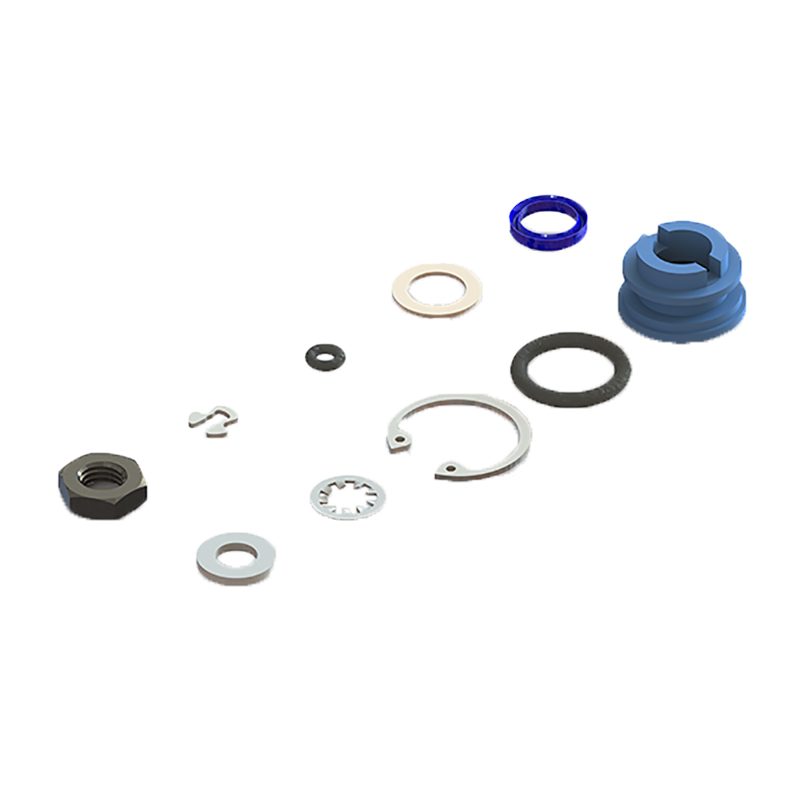

In The Box

Item# MBA Part # Description Quantity OEM Cross Reference Part #
1 MS16625-4081 Internal Retaining Ring 1 155-01200
2 MBA-01-10025 Spring Seat/Wiper Washer 1 095-01300
3 MS28775-113 O-Ring (Piston Head, Gland Static) 1 MS28775-113
4 MBA-01-10021 Lip Seal (Piston Rod, Dynamic) 1 MS28775-012
5 MBA-01-10022 End Gland 1 141-01200
6 MS28775-006 O-Ring (Piston Head Bypass) 1 MS28775-006
7 T5304-015 Snap Ring 1 155-04800
N/A
 MS35333-40 Star Lock Washer
 1 MS35333-40
N/A AN960-616L Flat Washer 1 AN960-616L
N/A AN316-4 Nut 1 AN316-4
