Matco Brake Reline Kit Brl-6

$94.75/Each
Quantity
Add to Wishlist
Part# 06-00574
MFR Model# WHLBRL-6

Overview

Brake Reline Kit for B600 and B5T Brakes and XT Versions

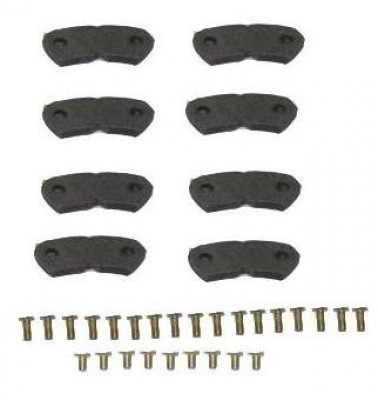

This reline kit includes linings and rivets for 2 calipers. Eight M66-1052 linings are included. This reline kit is used for 6 inch brakes on the internal caliper WHLB600, WHLB600XT, WHLW600XLT, WHLB5T, and WHLB5XT assemblies. This reline kit is typically used with the WHLD5T disc (7.75 inch outside diameter and 0.375 thick) for B5T & B5XT brakes, the WHLD6 disc (8.0 inch OD and 0.375 thick) for B600 & B600XT brakes, or with the WHLD2 disc (8.00 OD and 0.25 thick).

This is a 2 rivet lining. Eight MSC4-4 rivets and sixteen MSC4-4 rivets are included in the kit.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

The product (Matco Brake pads) are good and arrived on time. The sales woman was great. Her name and extension number was on the invoice which allowed me easy access to reconnect after I broke one of the eight. She contacted the manufacturer and arranged for the purchase of one only. Thank you again Robin.

Robert L Verified Purchase

Matco Brake Reline Kit Brl-6

August 25, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Why are there long and short rivets in the Matco Brake Reline Kit BRL-6? Where can I buy extra rivets?

The stationary brake shoe uses long rivets and the moveable shoe uses short. Extra rivets can be purchased but they are special order. Please contact sales at 877-477-7823 for current price and lead time of replacement rivets, reference part numbers MSC4-6 (long) and MSC4-4 (short).
