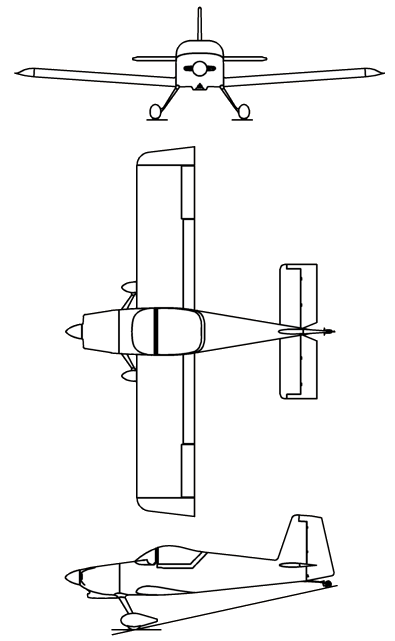

Vans Aircraft RV-9A




Van’s has always striven for "Total Performance"; the ability to do as many things well as possible. But all airplanes are compromises, and no matter how versatile, each is biased toward a particular "mission." Blazing speed and "wring-it-out" aerobatics are not important for many pilots. Their day-to-day flying consists of local trips, relaxed cross-countries, and occasional long flights. The RV-9/9A was designed to do its best in this environment. The performance it provides is useable every day. It’s so easy to fly that low time pilots can make a quick and painless transition. Its short field performance permits it to easily use the same airports other RVs use. When it’s time for that long cross-country, the RV-9/9A will get you there and back as quickly as any similarly powered RV. What sets the RV-9/9A apart from other RV designs? In a word, the wing. It is longer and narrower than the wings of the RV-4/6/8 series, and uses a new Roncz airfoil. The increased span allows it to climb well on low power and glide a long way. The flaps are a long span, slotted, high lift design that allows the airplane to land slower than many primary trainers. A simplified constant-chord horizontal tail and large vertical tail are proportioned to work with the longer wing. The robust fuselage and cabin are identical to the RV-7/7A and there are the same sliding/tip-up canopy and trigear/tailwheel landing gear options. The RV-9/9A’s efficient airframe does not need a lot of power to perform well. Low overall drag means a smaller engine can pull it along at relatively high top speeds, or, more practically, at useful cruise speeds using little fuel. We demonstrated this when we chose a 118 HP Lycoming (taken from a Cessna 152) to power our prototype. The result was an efficient airplane with respectable short field capability, excellent cruise speed (165 mph on 118 hp!), and good fuel economy. But we also engineered the airframe to accept the 160 HP Lycoming O-320. With this kind of power, the RV-9/9A becomes a real performance tiger! Higher speeds and climb rates are available without sacrificing low speed performance or handling. Like other RVs, you can only really begin to understand it by flying it. Handling is docile and easy, but not mushy or unpleasant. In keeping with our goal of offering a more "relaxed" airplane (one magazine writer called it "laid-back") suited to those who enjoy more leisurely flying, control forces are firmer than other RVs and response rates are slightly less rapid – although it will seem very sporty indeed to those used to production aircraft. The stall is very gentle. Everyone who has flown the airplane has remarked on the low landing speed and the low speed controllability. This is an airplane that you look forward to landing---it’s so much fun, you want to do it over and over. Thousands of RV-9/9As have been sold, and as more are finished and flown, sales have increased. We think owners are spreading the word – this is a very good airplane!
Specifications: Kit Price w/o Engine: ~$34,180.- Plans Price: ~$275 Number of Seats: 2 Building Materials: M,A,FG Building Time: ~1500 HRS Standard Engine: LYC. O-320/118 HP Horsepower: 118-160hp Wing Span: 28 Ft. Length: 20ft 5 in Height: 7ft 10in Wing Area: 124 Sq. Ft. Empty Weight: 1028-1075 Lbs. Gross Weight: 1600-1750 Lbs. Wing Loading: 12.9 - 14.1 lb/sq ft Power Loading: 13.6 - 10.9 lb/sq ft Takeoff Distance: 525 Ft. Landing Distance: 355 Ft. Cruise Speed: 166 MPH Top Speed: 170 MPH Fuel Capacity: 36 Gal. Range: 875 Miles Baggage: 75 lbs
