Static Port Aluminum 15160

$24.75/Each
Quantity
Add to Wishlist
Part# 15160

Overview

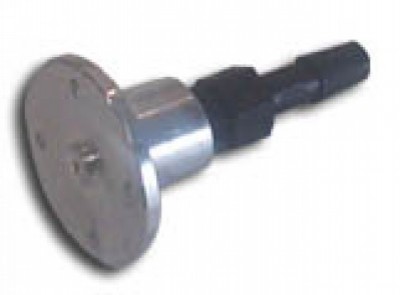

Aluminum static port for mounting through 1/4" diameter hole in side of the fuselage. Base has 1/8" NPT female port for connecting to static line (polyethylene fitting included). Install with 3/32" diameter flush rivets.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Fast delivery, just what I ordered!

David N Verified Purchase

Static Port Alum. #15160

August 23, 2024

Good value

Sam O Verified Purchase

Static Port Alum. #15160

August 29, 2022

ok

Juan G Verified Purchase

Static Port Alum. #15160

January 22, 2022

Looks great

Kenneth J
May 21, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the 15160 static port mount from inside or outside the fuselage?

It will work either way, but it is designed to go through a 1/4" hole from inside the fuselage.

Q: How thick of a fuselage can I have to use this static port? Part #15165 Composite aircraft so a little thicker than aluminum skin.

We measured one from stock and it looks like the max panel/skin thickness is 3/16". Anything thicker would not allow room for the retaining nut.

Q: What size tubing is used with this aluminum static port 15160?

1/4" ID hose.

Q: What is the diameter of the head/flange on the static port 15160?

The OD is 1.25".
