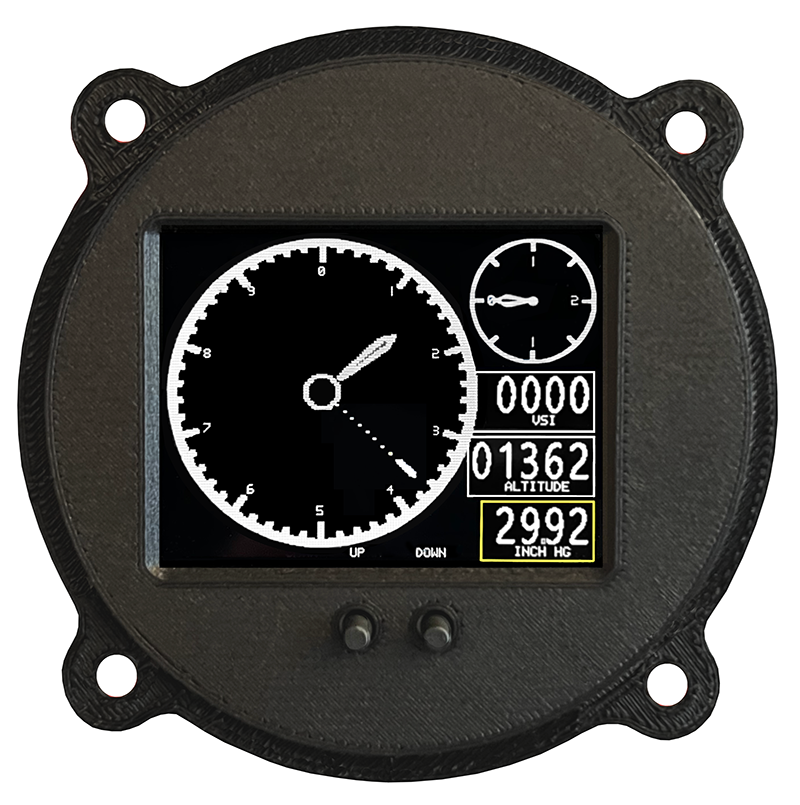

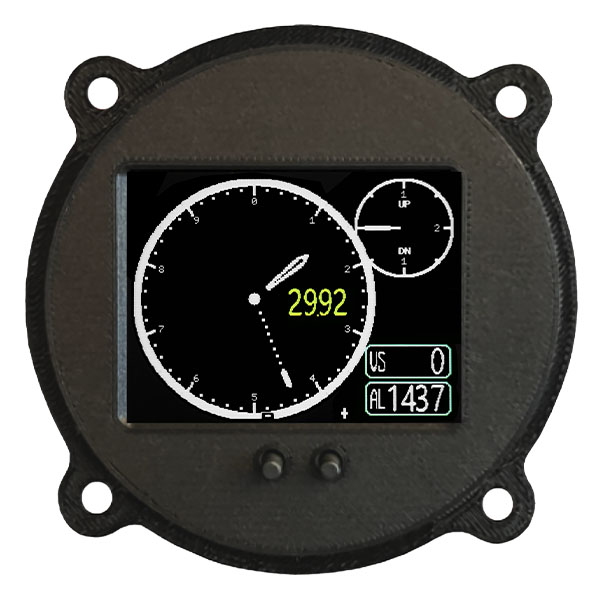

Radiant Altimeter + VSI Combo
FREE Shipping
Overview
|
Introducing the RADIANT Altimeter + VSI Combo, a must-have for any aviation enthusiast or professional pilot. With a bright and clear display, the instrument is available as either 2 1/4" or 3 1/8 panel cutouts.
This new Digital Altimeter has improvements in both value and price. It clearly displays altitude and vertical speed in both digital and replica analog format. We have also improved the internal numerical font representation, resulting in clear and visible digital numbers. Also improved is the size of the units, with availability for the larger 3 1/8 inch panel cutout. The overall thickness of the unit is also reduced to less than ½” (not including electrical connectors or bezel). In a nutshell, this new product is similar to, yet distinct from, our older GEN-2 Digital Altimeter.It has an improved screen representation but does not include a barb adapter or an external temperature probe. In addition, RADIANT is increasing its warranty period to three years for this new instrument, allowing more time for experimental builders to design their instrument panels with factory warranty support. With clear and easy-to-read displays, this Altimeter + VSI Combo is designed to enhance cockpit visibility and improve situational awareness. Whether you're soaring through the skies for pleasure or conducting professional flights, this device is an essential tool for safer and more efficient aviation. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
| Feature | GEN2 Digital Altimeter + VSI | NEW Altimeter + VSI COMBO |
|---|---|---|
| Part # | RDAL-22-GEN2 | RI-2024-1&2 |
| Analog Dial Atlimeter? | YES | YES |
| Digital Altimeter? | YES | YES |
| Settable Kollsman Window? | YES | YES |
| VSI Analog? | NO | YES (small dial) |
| VSI Digital? | YES | YES |
| Altimeter Calibration? | YES | YES |
| Density Altitude? | YES | NO |
| Barb Adapter? | YES | NO (uses cabin pressure) |
| Outside Air Temp (and Probe)? | YES | NO |
| 2 1/4" panel cutout? | YES (enlarged cutout | YES (enlarged cutout) |
| 3 18" panel cutout? | Adapter ring available, not included | YES (adapter ring is included) |
| Range | 0-20,000 ft/+/-2000 FPS | SAME/SAME |
| Dimable | Optional potentiometer | SAME/SAME |
Specifications
- Unit weight of approximately 2 ounces (~57 grams).
- Units are available for standard 2 0†4¡± or 3 1/8¡± panel cutouts
- Power Requirement is 6.5 to 14 volts @ 125ma. These units will run off a 9-volt alkaline battery. The power must be externally switched, EG, through master avionics power switch.
- For use in experimental and ultralight aircraft, may also be used in LSA aircraft with manufacturer approval.
- Cases are 3D printed in black nylon.
- Dimmable. (External potentiometer NOT included).
- NEW 3 year warranty, allows more time to build panel and test.
Reviews
Perfect for my ultralight. Running it with a 9V battery.
Verified Purchase
Altimeter Vertical Speed Indicator Combo For 2 1/4
Products looks good. The one that I get it never power up!
Verified Purchase
Altimeter Vertical Speed Indicator Combo For 3 1/8
Compared during flight and seem to be accurate to aircrafts altimeter.
Verified Purchase
Altimeter Vertical Speed Indicator Combo For 2 1/4
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, this is programmable in Milibars once you install it.
Yes, this is switchable to metric/meters.
