Safe Flight Pre-Stall Warning

From $2795.00 to $3222.00
Description Model Part No. Price Buy
Horn and LightR (14V)
10-22712
$2795.00
Quantity
Horn and LightS (24V)
10-22724
$3222.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Note: Face place for the Model S and Model R are the same

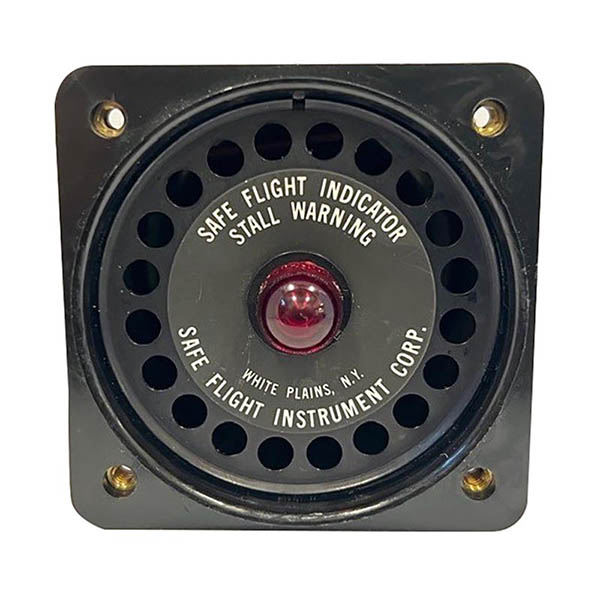

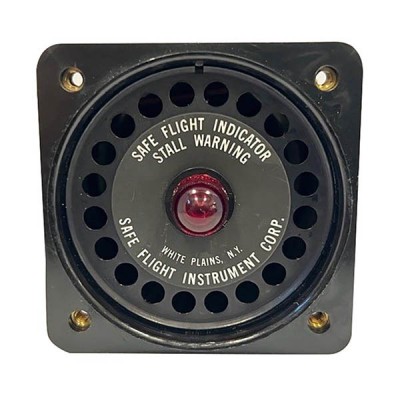

Warns by light and horn of any danger of an approaching stall regardless of the flight maneuver. Never signals unless a stall is imminent. Consists of an instrument panel unit (fits standard 2-1/4" hole) containing a warning horn and signal light, and a small vane wing unit which operates a relay. Operation of the instrument does not depend upon air speed but rather on the air flow conditions of the wing. Complete with installation kit & instructions. Installation time: 2­6 hrs.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

Reviews

I AM PLEASED WITH YOUR SITE.

Dib C
April 27, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the amperage draw on this? I want to include it in our design but need to know this for the electrical layout. Thanks!

We have added the "Drawing and Notes" PDF to the documents tab of the web page. In the notes, it mentions 2A resistive, 1A inductive.

Q: Is this stall warning indicator heated?

No, this is a non-heated probe.

Q: What can I use indicator or warning horn of this detector? And I would like wring diagram of this part. Could you please provide wiring diagram of this part to me?

Per the manufacturer, this will include all parts necessary for installation as well as installation instructions.

Q: Is 10-22724 the same as 02054-2 (02404-2)?

Part number 02054-2 is just the horn assembly. 10-22724 is the horn and light kitted together.
