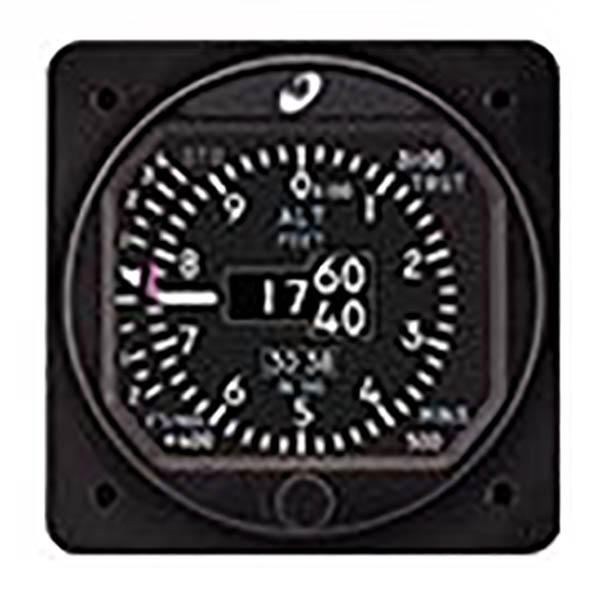

Overview

	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

• User-Selectable Features: Vertical speed indicator (ON/OFF)
• 6-second vertical trend (ON/OFF)
• Altitude target (ON/OFF)
• Approach minimums alert (ON/OFF)
• Barometric setting (millibars, hectopascals or inches of mercury)
• Operating range up to 55,000 feet
• Configurable altitude units (feet or meters)
• Baro setting synchronized via ARINC 429
• Encoding outputs via ARINC 429 and Gray Code
• Standard 2-inch size
• Lightweight — 0.4 lbs
• Simple user interface — Single, push-and-turn control knob
• Daylight readable LCD and smooth, high-resolution graphics
• Manual external lighting control or built-in photocell for automatic dimming
• SSEC curve customized to match primary flight displays (available)
• Night Vision Imaging System (NVIS) compatible (available)
• TSO certified (Design Assurance Level A)
• Designed and built in Wichita, Kansas, USA
• Two-year limited warranty

Specifications

• Power Input: 10–32 VDC
• 0.14A @ 28 VDC; 4 watts nominal
• Data Input: ARINC 429: Low or high speed; Labels 234, 235
• Pressure: Absolute/Static (Quick Disconnect)
• Data Output: ARINC 429: Low or high speed; Labels 203, 204, 212, 217, 234, 235
• Gray Code
• Operating Range: -1,500 to +55,000 feet
• Units of Measure: Altitude: Feet or meters
• Barometric Setting: Millibars (mb), hectopascals (hPa) or inches of mercury (in.Hg)
• Lighting: 5, 14, or 28 VDC external control or internal photocell for automatic dimming
• Weight: 0.4 lbs (0.17 kg)
• Mounting: Rear panel mounted, (4) #6–32 screws, 2.25-inch round bezel
• Dimensions: 2.43 x 2.43 x 1.0 inches (61.7 x 61.7 x 25.4 millimeters)
• Mating Connector: P/N 9019162-1: 26-pin, D-Sub electrical connector (Quick Disconnect)
• P/N 9019162-2: Pneumatic fitting (Quick Disconnect)
• Certification: FAA TSO certified to C10c, C106, C113b
• RTCA DO-160G qualified
• RTCA DO-178C qualified, Design Assurance Level (DAL) A
• Rights: U.S. Patent 11,048,389
