Electronics International TR-1-Np Rpm Instrument
Select Package:
StandardPremium
FREE Shipping
Overview
|

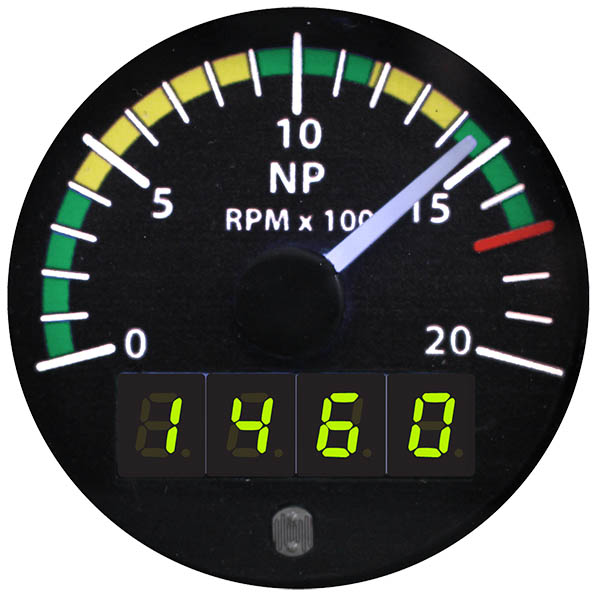

The TR-1-Np is a 2" Prop RPM instrument for use with turboprop engines. This instrument has exceptional performance, reliability and features a design driven by 38+ years of experience. If you need to replace or overhaul an old failing gas generator instrument, buy the TSO approved TR-1-Np Prop RPM instrument which was designed with the latest digital technology. The TR-1-Np Prop RPM instrument was designed as a replacement for existing 2" instruments. Depending on your current installation you may need to wire in aircraft power and ground. The instrument features a 210° analog arc, backlight with auto dimming and a digital display. The instrument’s faceplate will be custom built to match your aircraft’s limits (red/yellow markings). The TR-1-Np fits into a 2" standard round hole (MS28041-1A mount) and is 4.23" long (one of the shortest cases on the market). It is FAA Certified to TSO: -C43c, -C44c, -C45b, -C47a, -49b, -C55a and comes with an FAA 8130-3 Airworthiness Approval Tag.
|
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
TR-1-NP RPM (Standard Pkg)- 1 Year Warranty
- FAA TSO’d
- No Risk 3-Month Money-Back Guarantee
- 8130-3 Airworthiness Approval Tag Provided
- 3 Year Warranty
- FAA TSO’d
- No Risk 3-Month Money-Back Guarantee
- 8130-3 Airworthiness Approval Tag Provided
- 1000+ hours of recording at 1 second per record.
- Priority service on warranties and orders.
- Free overnight shipping on warranties and orders.
- Warranties handled by providing an exchange unit.
- Custom-printed faceplates with your aircraft’s markings will be held in stock.
- Replacement units will be held in stock.
- Exchange the TR-1-NP for an MVP-50T within one year and get full credit on your returned TR-1-NP towards the purchase price of an MVP-50T.
Specifications
- Size: 1.932″ Dia, 4.23″ long (Not including the connector), 2.0″ dia Bezel
- Mount: MS28041-1A, Two Inch Round
- Weight: 0.3 Lbs.
- Environmental: Designed and Tested to TSO, DO-160G
- Software: Designed and Documented to DO-178C, Level C
- Minimum Performance Standards: TSO‐C43c, TSO‐C44c, TSO‐C45b, TSO‐C47a, TSO‐49b, and TSO‐C55a.
- Power Requirements: 6.0 to 55 Volts, 0.075 Amps @ 28V (Typ), 0.05 Amps @ 14 Volts (Typ).
- Communication Port: RS232
- Display Area: Backlit for night operation. Optional Red and/or Yellow Warning Lights
- Dimming Circuits: Electric eye and Control Voltage Input. * Analog Pointer: 210° sweep, Backlit.
- Digital Display: 4 digits, -999 to 9999 (or -99.9 to 999.9) readings, Dimmable.
- Data Recording: 1000 Hours at 1 second per record, accessible via RS232 Port.
