Overview

Note: Redline Worksheet in "Documents" tab must be filled out and submitted on every order. Marking and Configuration Worksheet **Required** Replaces 15 engine gauges and 50 functions. Remarkable full-color, enhanced TFT Glass Display (excellent viewability, even in direct sunlight) Pilot- Programmable Colors, Range Markings, Limits and Voice Alarms (for each parameter monitored) “System Page” to display Trims, Flaps, Wheel Status Lights, and many other system parameters and annunciators. 27 Pilot-Customized Annunciators at the top of the “Main Page”. Fuel Management, Timers, Clocks, Date, Weight & Balance. Data Recording (.33 – 6 min, 665 hours @ 6 seconds). Pilot-Customized Checklists and Flight Plans. General Info, Flight Log, Start Log, Max & Min Data. Pilot easily can generate Custom Screens and download them to the MVP-50P through the USB port. Help Screen, GPS Interface and Data, Fuel Efficiency, Fuel Used for the Trip, Fuel Used Since Fill Up, Time to Empty, Distance to Empty, Fuel to Way Point, Time to Way Point, Distance to Way Point, Fuel Reserve, Time Reserve, Distance Reserve, Up Timer, Down Timer, Flight Timer, Engine Hours, Cycles, Date, Local and Zulu Time. Other functions, such as Fuel Level, Gyro Vac, Hydraulic Pressure, etc., may be added by purchasing an appropriate probe & harness, or transducer, etc. Using your current Resistive Fuel probes require our FFLM-4-XX to interface with the MVP-50T System. Torque, Oil Pressure & Temperature, Fuel Flow & Pressure, OAT, Amps, Volts, Multiple Fuel Screens, Pre-wired Harness, N1 and N2 hookups. Includes EDC (Engine Data Converter), cables and harnesses, transducers, shunt (for amps), USB Download/ Upload Memory Stick, and our AV-17CP (Voice Warning Control Panel). Only 5.55”x 5.15”x 2.4” deep. Model Description Part No. MVP-50T-PT6-C Certified (TSO'd) Pratt & Whitney PT-6 Turboprop Package 10-05090 MVP-50T-W-C Certified (TSO'd) Walters Engine Turboprop Package 10-05089 MVP-50T-G-C Certified (TSO'd) Garrett Turboprop Package 10-05091 MVP-50T-L-C Certified (TSO'd) Lycoming Turboprop Package 10-05092 MVP-50T-A-C Certified (TSO'd) Allison Turboprop Package 10-05093 MVP-50T-J85-C Certified (TSO'd) General Electric J85 Jet Engine Package 10-05094 MVP-50T-WJ33-C Certified (TSO'd) Williams J33 Jet Engine Package 10-05101 MVP-50T-PT6-C Certified (TSO'd) P & W Pt-6 Turboprop Twin Engine 10-05090

	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Functions Included

• Help Screen
• Weight and Balance Data
• Weight and Balance Graph
• GPS Interface and Data
• Fuel Efficiency
• Fuel Used for the Trip
• Fuel Used Since Fill up
• Time to Empty
• Distance to Empty
• Fuel to Way Point
• Time to Way Point
• Distance to Way Point
• Fuel Reserve
• Time Reserve
• Distance Reserve
• Up Timer
• Down Timer
• Flight Timer
• Engine Hours
• Cycles
• Date
• Local Time
• Zulu Time
• Voice Warnings (Experimental Only)

Specifications

• Now TSO’d & STC’d
• Weight: 1.9 lbs.
• Width: 5.55 in.
• Length: 5.15 in.
• Depth: 2.4 in.
• Power Requirements: 7.5 to 30 Volts
• Warranty: 1 year from installation

Documents

• Marking and Configuration Worksheet **Required**
• Operating Instructions
• Installation Instructions
• Installation Checklist
• Setup Checklist
• Pilot's Diagnostic manual
• STC / Aircraft Model List (AML) List
• Order Form

Hardware Included

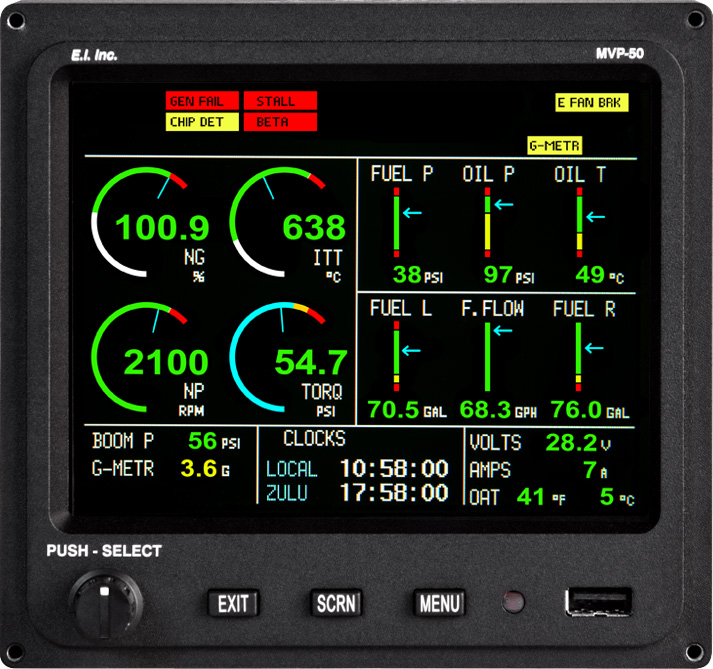

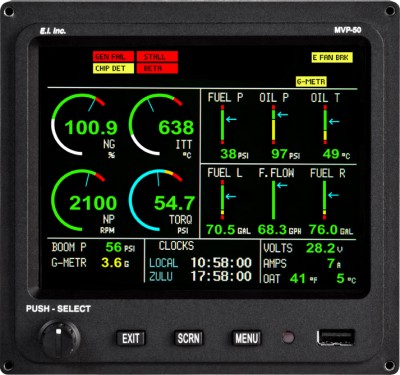

• MVP-50T Color Display Unit
• EDC Engine Data Converter
• Pre-wired Harness
• N1 and N2 Hookups
• Torque Pressure Transducer and Cable
• Oil Pressure Transducer and Cable
• Oil Temperature Probe and Cable
• Fuel Pressure Transducer and Cable
• Fuel Flow Transducer and Cable
• OAT Probe and Cable
• Shunt (for AMPS) and Cable
• Volts Pickup
• USB Download/Upload Memory Stick
• AL-1R External Red Warning Light
• AL-1Y External Yellow Caution Light
• AV-17CP Voice Warning (Experimental Only) Annunciator Interface
• Resistive Fuel Interface
