Alpha Systems AOA Heated Probe And Relay Kits

0 Reviews 1 Answered Question
Select Voltage:
12 VDC24 VDC
Quantity
Add to Wishlist

Overview

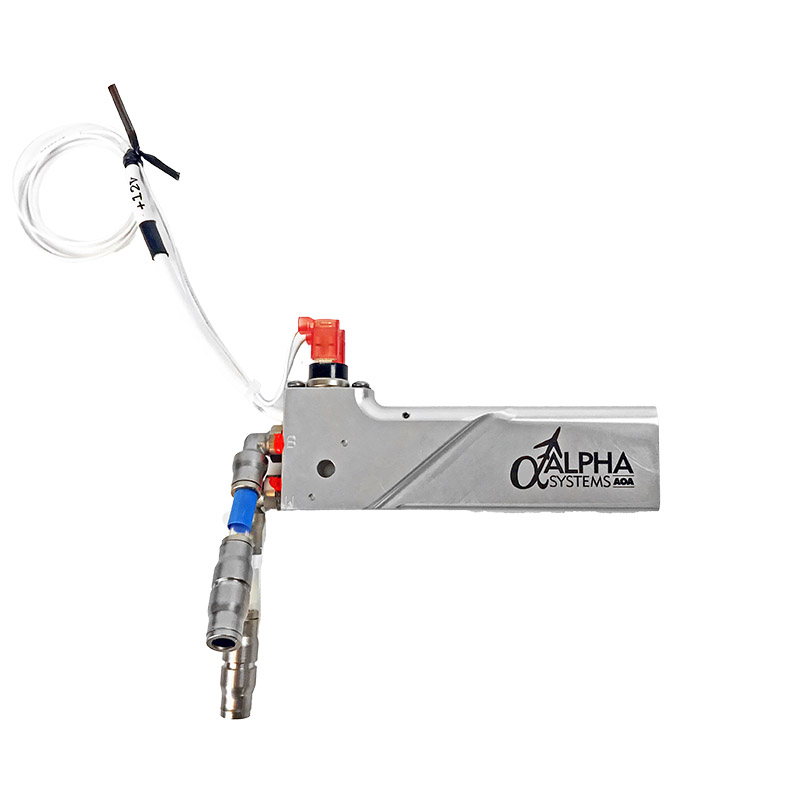

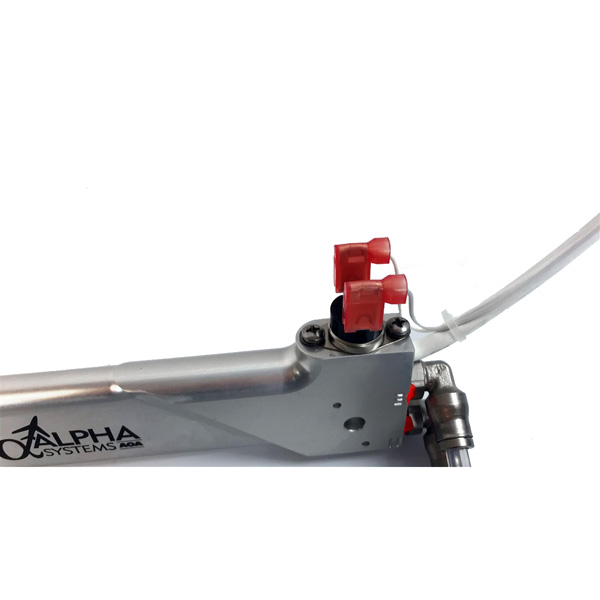

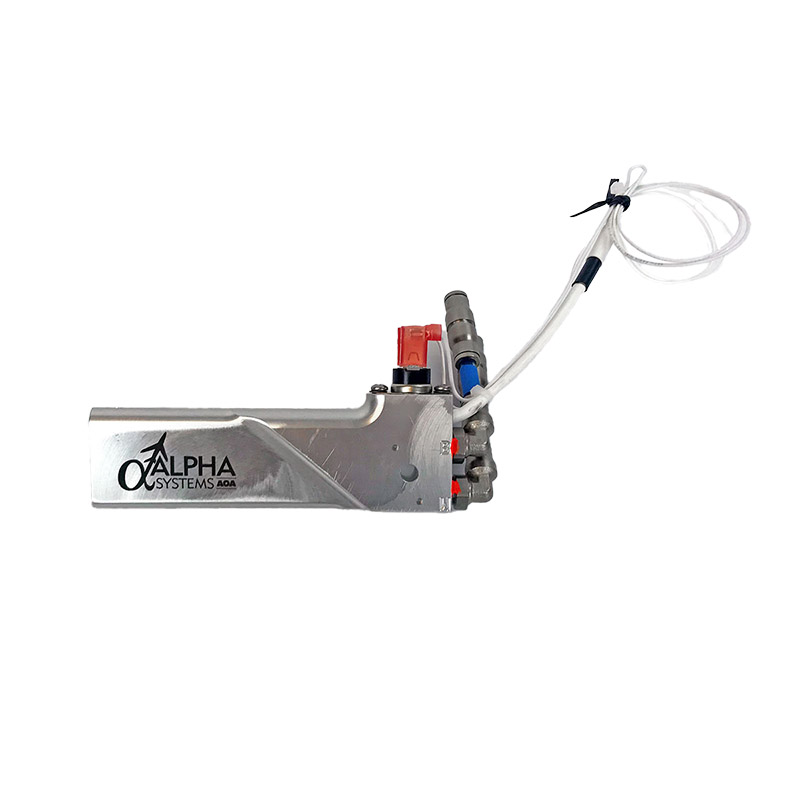

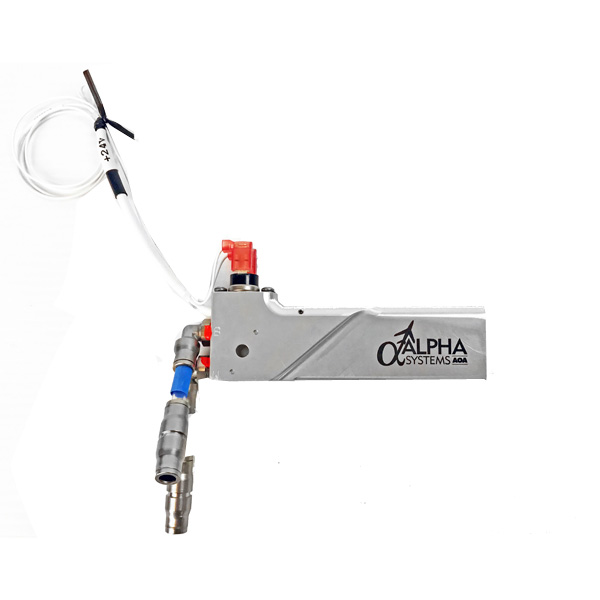

Heated Probe has a built in heater of 12/24VDC that minimizes the potential for ice build up on the leading edge of the probe. This newly designed probe is ideal for airplanes that have less than 2" of clearance in the wing inside the inspection cover. (i.e. Bonanza) This probe can be used in all airplanes.

With a schematic the relay can be used to turn on our 12V AOA heater with the pitot heat switch.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Built in heater of 12/24VDC.
  • Requires a dedicated 10 amp breaker or fuse, switched, due to 7.167 amp draw.
  • It is a drop in replacement and can be used or upgraded in the existing Alpha Systems AOA mounting plate.
  • Probe fittings can swivel to be installed in either the right wing or left wing.

Specifications

  • Probe with Relay Weight: Approximately 26.48 LBs / 1.655 oz
  • Heated Probe Weight: Approximately 8.4 LBs / 0.525 oz
  • Heated Relay Weight: Approximately 18.08 LBs / 1.13 oz

Documents

In The Box

  • 1- Probe comes complete with high temperature fittings and tubing

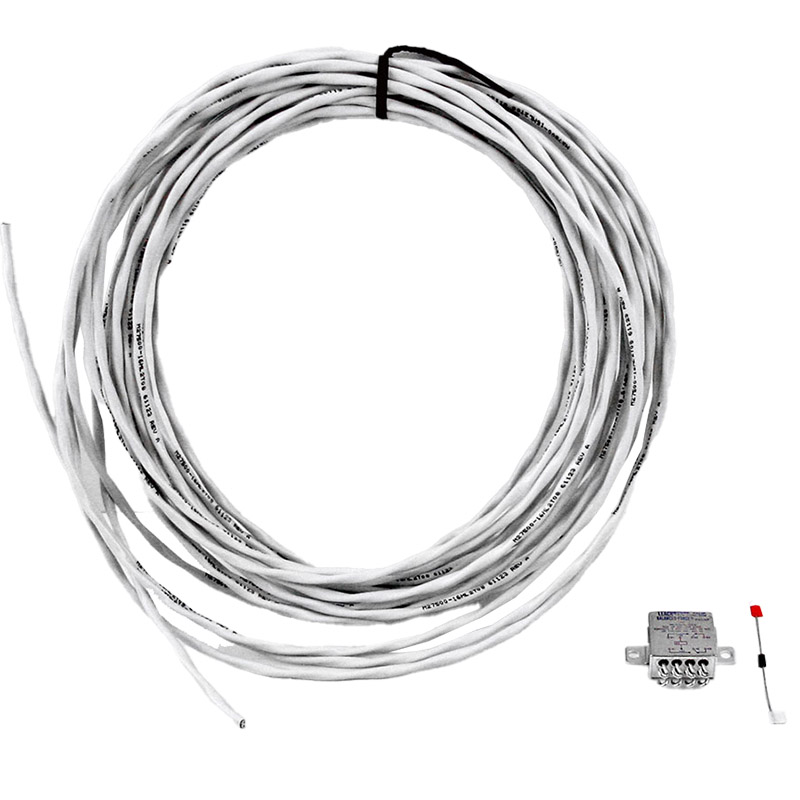

  • 1- 12/24VDC Heated Relay Kit
  • 1- Probe Cover
  • 1- Installation Instructions
  • 1- Heated Relay
  • 1- 12VDC Heated Relay Kit
  • 1- Installation Instructions

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What type of audio alarm dose it have?

This p/n is just for the heated probe accessory, there is no audio. Please see the eagle or falcon aoa kits for full system.
