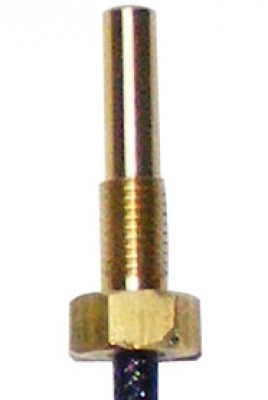

Outside Air Temperature Sensor A200-Tsa

$230.95/Each
Quantity
Add to Wishlist
Part# 10-04802
MFR Model# A200-TSA

Overview

The A200-TSA is a monolithic temperature sensor with on-chip signal conditioning and an operating temperature of -50°C to 150°C. It has an accuracy of +/- 0.5°C over the full operating range.

The output voltage is proportional to the temperature x the supply voltage (ratiometric). The output swings from 0.25 V at -50°C to +4.75 V at +150°C using a single +5.0 V supply.

The temperature transfer function is:
VOUT = (V+/5 V) × [1.375 V +(22.5 mV/°C) × TA]

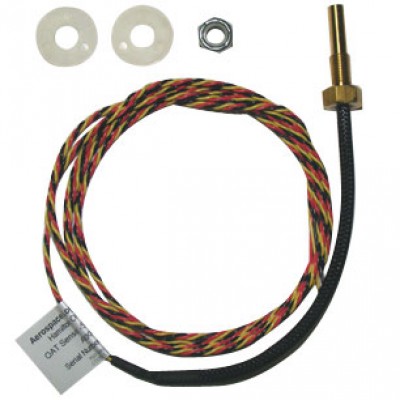

Supplied with a 48" color coded cable.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Power requirements are 5V / 1mA
  • Red Wire: 5V
  • Black Wire: Ground
  • Yellow Wire: Signal
