Aerospace Logic 200 - 2-1/4 Tachometer Kit - Slick Magneto - FAA TSO

1 Review 1 Answered Question
$868.00/Each
Quantity
Add to Wishlist
Part# 10-04478
MFR Model# TM200S

Overview

The TM200 is a precision tachometer that provides RPM data accurate to +/- 1RPM. It meets all the requirements of TSOC49b and provides the following functionality:
  • RPM indication in both analog and digital format, including support for engines that require a limited RPM range

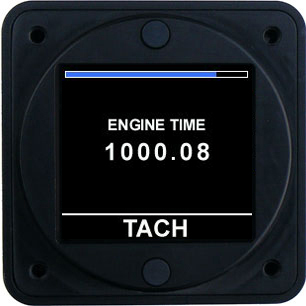

  • Engine time

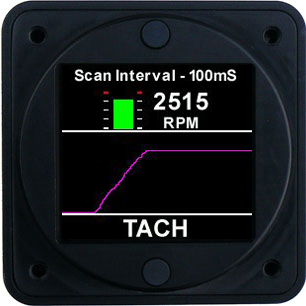

  • Trend graph function representing RPM vs. Time
This instrument requires a 0-5V DC pulse width modulated signal to provide RPM output. The input signal can be derived from an electronic ignition system or Hall Effect magneto sensor. The instrument will work on all 4, 6 and 8 cylinder aircraft engines.

Certification / Compliance
  • TSO C49b
  • Canadian STC
  • FAA STC
  • Certified as primary replacement Environmental
    • DO-160F
    • A1CAASXXXXXXZBXXBBBCSBA1C11XXAX
    Software
    • DO-178B
    DC Power Source
    • Input voltage 6 to 36 VDC
    • Power consumption 100mA
    • Load dump tolerance +60V
    • Direct spike tolerance +/- 60V
    • Cable spike tolerance > +/- 1KV
    Operating Temperature
    • Constant operating -15ºC to +55ºC
    • Short term operating (1hr) -40ºC to +70ºC
    • Storage -55ºC to +85ºC
    Signal Input
    • 0-5V pulse width modulated square wave
    Display Range
    • RPM 0 - 9000
    Accuracy
    • AS404C +/- 1 RPM
    LCD Display
    • Sunlight readable LCD
    • 80º Viewing angle from all directions
    • Internal and external intensity control
    Annunciator Output
    • 100mA sink with reverse EMF protection
    Interface Connector
    • DB-25
    Software Functionality
    • Primary Engine RPM
    • Engine Time Display of engine time
    • Trend Graph Graphic display of engine RPM
    Dimensions
    • 2.45” X 2.45” X 0.9”
    Weight (excluding harness)
    • 4.05 oz
    Finish
    • Black anodized 6061 aluminum
    		•

    California Prop 65 Warning Symbol

    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Documents

    Reviews

    Submit a Review

    I ordered this Tachometer for my Cessna 150. This is a great Tachometer! I love the way it looks and it was super easy to install. Works great and gives an accurate reading. Great upgrade from my mechanical tachometer. I love how you can enter your current tach time so you don’t have to start at 0 and covert everything. I would definitely consider this tachometer for your instrument panel, it worked out great for me!

    Riley
    August 28, 2022

    Q&A

    Submit

    Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

    Q: What are the dimensions of the Aerospace Logic 200 tachometer, part # 10-04478?

    2.45” X 2.45” X 0.9”
