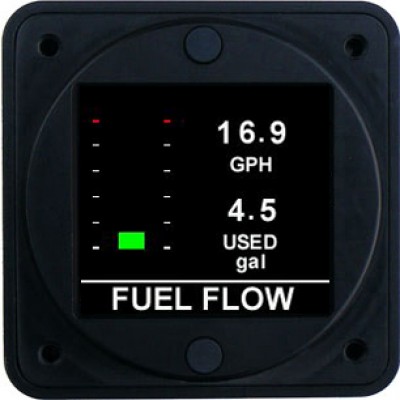

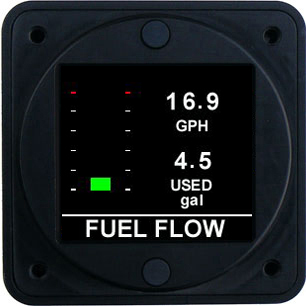

Aerospace Logic Fuel Flow Kit Single Engine
From $1113.00 to $1113.00
Overview
|
Aerospace Logic AOG Expedite Available, additional charges will apply. This kit includes both instrument and fuel flow transducer. The FF200 instrument is an advanced, next generation airborne fuel flow instrument that displays fuel flow in a single fuel line. Fuel flow functionality is TSO'd and meets the repeatable accuracy requirements of SAE AS407B, +/- 0.1US Gallon per hour. Functional displays include: Graphical indication of fuel flow Digital display of instantaneous fuel flow Digital display of fuel used since flight commencement Fully programmable color indication to meet all aircraft marking requirements These instrument kits are TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR). These instrument kits includes the full installation wiring harness, fuel flow transducer for a maximum fuel flow of 30-60gph and all necessary install hardware for the instrument. Installer supplied couplings are needed to be supplied by the installer to mate to the fuel flow transducer, as required. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Certification / Compliance:
TSO C44bCanadian STCFAA STCCertified as primary replacement
- SoftwareDO-178B
- DC Power Source
Input voltage 6 to 36 VDCPower consumption 100mALoad dump tolerance +60VDirect spike tolerance +/- 60VCable spike tolerance > +/- 1KV
- Operating Temperature
Constant operating -15ºC to +55ºCShort term operating (1hr) -40ºC to +70ºCStorage -55ºC to +85ºC
- Signal Input
Pulse width modulated DC. 0-5V
- Accuracy
AS407B +/- 0.1 USG/hr
- Display Units
US Gallons per hour or Litres per hour, user selectable
- Range0.6 to 30-60 USG/hr
- Display
Sunlight readable LCD176 X 192 display pixels65,535 colors
- Annunciator Output
100mA sink with reverse EMF protection
- RS-232 Data
Output 1 second per full sequence at 57.6K bps (8/N/2/N)
- Interface Connector
DB-25
- Software Functionality
Primary Display: Instantaneous fuel flow in graphic and digital forms, total fuel used since flight commencement
Trend Graph: Graphic display of flow vs time, instantaneous fuel flow
Specifications
- Dimensions: 2.45” X 2.45” X 0.96”
- Weight (excluding harness): 4.05 oz
- Finish: Black anodized 6061 aluminum
