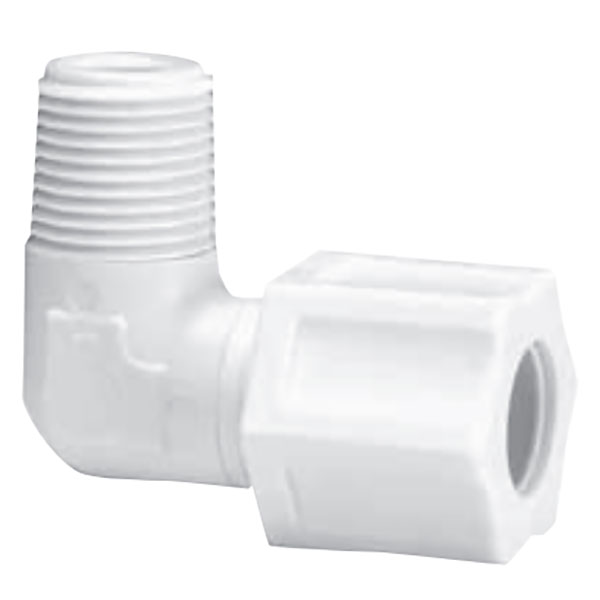

1569 Series Male NPT Nylon Compression Elbow

From $2.75 to $5.80
Tube O.D. Male
Pipe Thread

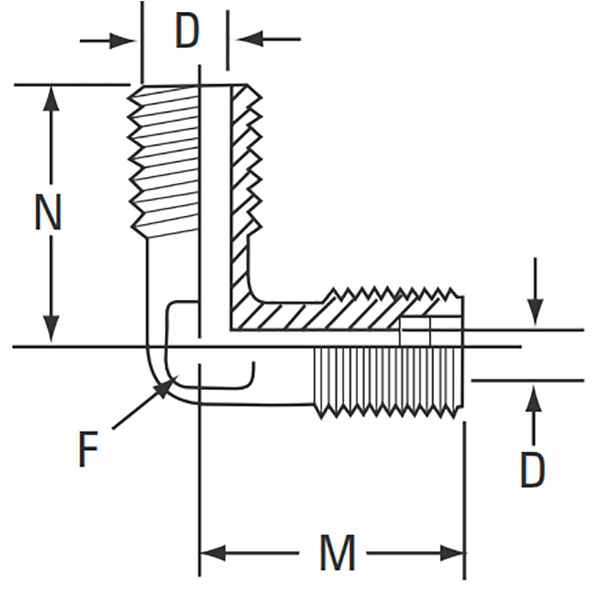

OEM P/N M N D D1 Across Flats(F) P/N Price Buy
1/41/81569x4G0.810.810.220.253/8
12-05475
$3.35
Quantity
1/41/41569x4x4G0.811.020.220.283/8
12-05476
$2.75
Quantity
3/81/41569x6G0.941.030.300.3137/64
12-05477
$5.80
Quantity
3/83/81569x6x6G0.941.090.340.389/16
12-05478
$3.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

1569 Series Male NPT Nylon Compression Elbow.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Connection Type A x B: Tube x Male NPT
  • Material: Nylon
  • Specifications: SAE
  • Style: Gripper Style Nut
  • Type: Compression Elbow
  • Working Pressure: 220 psi
