Tanis Heli Preheat Kit R44 With Adhesive - 115V

$2647.00/Each
Quantity
Add to Wishlist
Part# 05-14813-1
MFR Model# TA2778-1

Overview

Heli-Preheat Kit – Robinson R44 – 115V Standard (CHT wells not required).

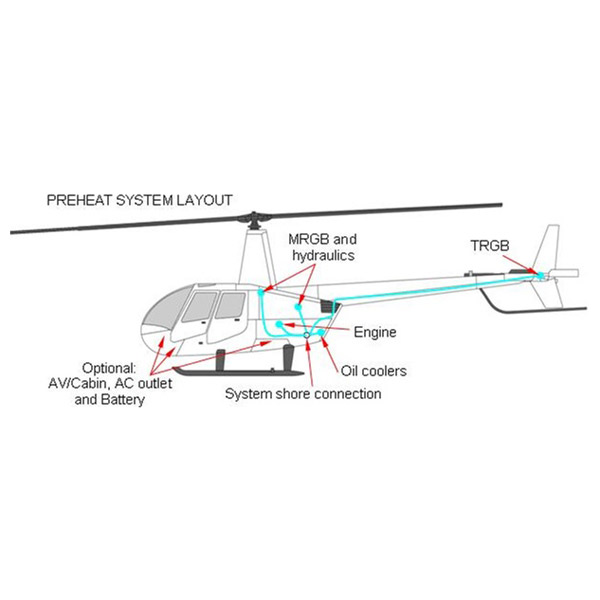

Preheat is applied through electrical resistance heat elements located in each cylinder assembly, on engine crankcase and oil sump/tank, main and tail rotor gearboxes, and hydraulic reservoir, preheat critical components, oil, and attached accessories. Power is routed to the elements through a dedicated wiring assembly with circuit overload protection and power indicator light. System is self-regulating through design. Heated components reach an average state of thermal equilibrium in approximately six hours.

Known Engines: O-540-F1B5 , IO-540-AE1A5

This preheat kit when installed will supply 633 watts with a 5.5 amp draw at 115 volts.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Heli Manufacturer: Robinson
  • Cylinder Piston/Radial: 6
  • Helicopter Cylinders: 6
  • Engine Manufacture: Lycoming
  • Voltage: 115V
  • USA-Cert (8130-3 available) PMA Kit (Yes)
