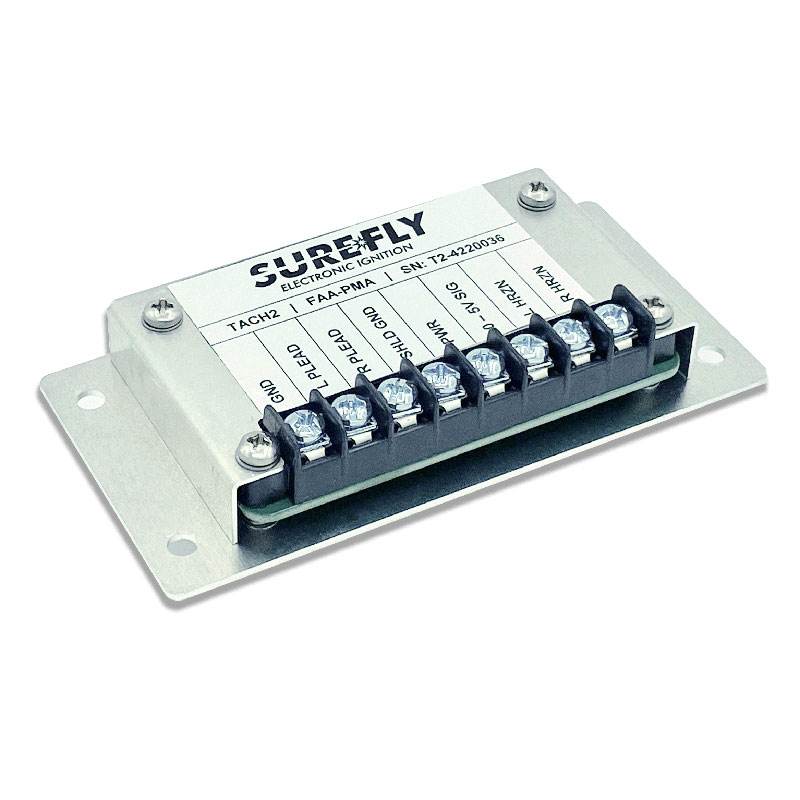

The Tach Signal Converter (Tach2) converts SIM P-Lead signals to negative –going signals compatible with the Horizon P-1000 digital tachometer input and to a positive-going 0-5V square wave signal compatible with electronic tachometers that rely on a signal from a magnetic pickup inserted into a magneto. Tach 2 can accept one or two SIM P-Leads as input, converts and conditions the signals and outputs them to corresponding output terminals. The Tach2 must be installed in the aircraft cabin and secured to the airframe with screws and nuts. The Tach2 power input from the aircraft bus may range from 8.5VDC to + 30VDC without damage. The Tach2 consumes less than 0.25A of power. 0.2 lbs. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
I installed this device for Dynon HDX system. It worked first time. I am happy with the result.
Surefly TacH2 Tachometer Signal Converter
Must have
Surefly TacH2 Tachometer Signal Converter
No problem.
Surefly TacH2 Tachometer Signal Converter
This worked great to integrate my surefly into both a Grand Rapids EIS4000 and EIS6000. It should help nicely integrate into many modern engine monitoring systems.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Please see the Documents tab for the dimensions footprint and necessary dimensions. We have also linked the install manual.
No, this is the unit only, the install calls for 20 gauge wire.
