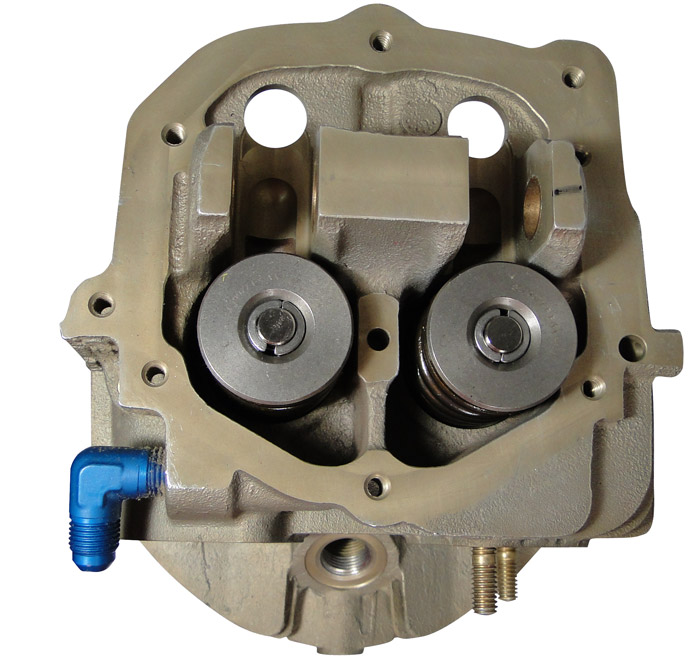

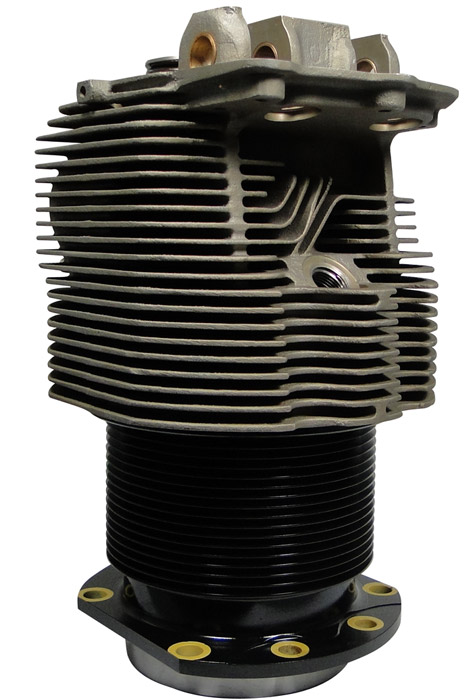

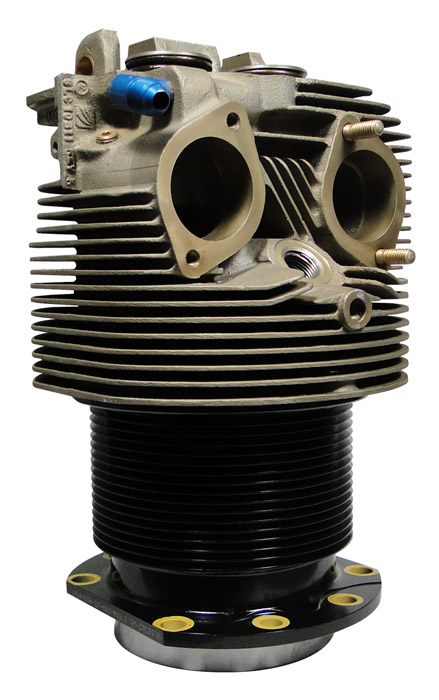

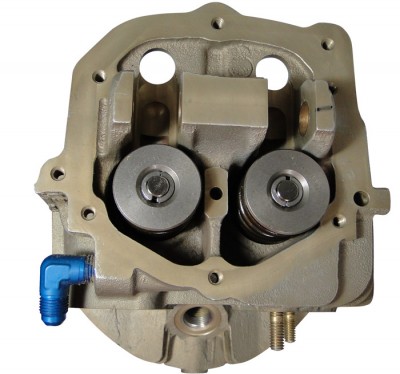

Superior Millennium Cylinder Power Assemblies SA55006-A20P

1 Review 1 Answered Question
Select Cylinders:
Single Cylinder6 Cylinder Kit
Quantity
Add to Wishlist View More In This Series →

Overview

Uniform hardness all the way through the steel barrel walls which allows the barrel to provide even wear while withstanding extreme cylinder temperatures and pressures.

Exhaust and intake ports are volumetrically matched to maximum output and performance.

Increased port wall thickness - eliminates problems with warping and cracking.

Computer-generated head fin configuration - deliver more uniform heat transfer and fewer "hot" spots.

Manufactured from the most advanced alloys available - exceed industry standard for strength and porosity.

+ Included with stud assembly.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Eligibilities

Engine Configurations
IO-550 -D, -E, -F, -L
IOF-550 -D, -E, -F, -L

Documents

Parts per Assembly

  • 1 - Insert, Valve (SA35967)
  • 1 - Guide, Exh. (SA636242)
  • 1 - Valve, Seat Int. (SA642318)
  • 1 - Guide, Intake Valve (SA643766-1)
  • 4 - Helicoil (MS122121)
  • 2 - Helicoil (MS21209-C4-15)
  • 4 - Stud (SA640482)
  • 2 - Helicoil (MS9018-01/2-50)
  • 1 - Cylinder Stud (SA55006-A1)
  • 4 - Key, Valve Spring Outr Retainr (SA24802)
  • 1 - Retainer (SA35971)
  • 1 - Valve, Int. (SA539988)
  • 2 - Retainer (SA625393)
  • 1 - Rotocoil Assembly (SA629117-1)
  • 2 - Spring-Valve, Outer (SA654442)
  • 2 - Spring-Valve, Outer (SA654441)
  • 1 - Valve, Exh. (SA643873)
  • 1 - Seal (646985)
  • 2 - Bolt (MS90725-12)
  • 1 - Ring (SA5003A)
  • 1 - Ring (SA5004)
  • 1 - Ring (SA5208)
  • 1 - Ring (SA5209)
  • 4 - Packing, Push Rod Housing (SA534610)
  • 1 - Gasket (SA534857)
  • 1 - Gasket (SA536413)
  • 1 - Gasket (SA628260)
  • 1 - Packing Cyl. Base (SA641066)
  • 1 - Piston (SA654857)
  • 2 - Washer (SA652947)
  • 2 - Shaft, Rocker (SA652984)
  • 1 - Valve Cover Black (SA625615BLK)
  • 8 - Screw (SA535118)
  • 8 - Washer (MS35338-44)
  • 8 - Washer (NAS1149F0432P)
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Paracaidismo V Verified Purchase

Superior Millennium Cylinder SA55006-A20P Continental 6 Cylinder Kit
March 24, 2024

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do these Superior cylinders come with full install gasket kit like the OEM?

Yes, it does include a gasket kit.
