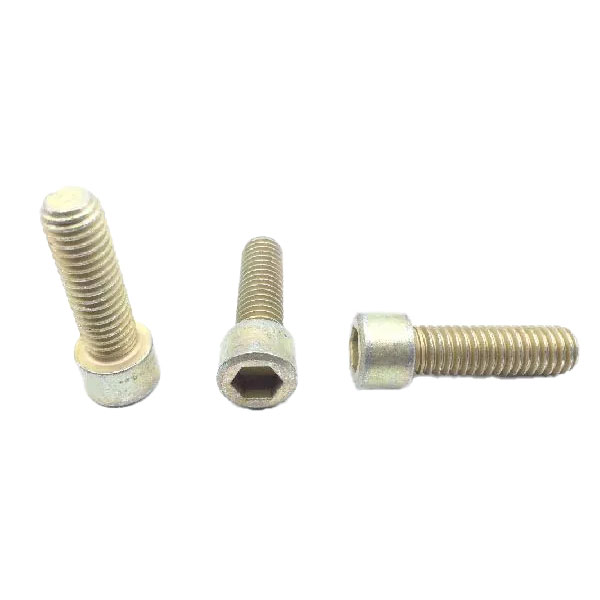

Superior NAS1352-6H20P Screw
$18.65/Each
Part# 08-10894
MFR Model# NAS1352-6H20P
MFR Model# NAS1352-6H20P
FREE Shipping
Overview
| Superior NAS1352-6H20P Screw. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- Fastener Length: Between 1.210 inches and 1.250 inches
- Hardness Rating: 38.0 rockwell c and 45.0 rockwell c
- Head Diameter: Between 0.550 inches and 0.562 inches
- Head Height: Between 0.368 inches and 0.375 inches
- Head Style: Flat chamfer
- Internal Drive Style: Hexagon
- Material: Steel
- Min. Tensile Strength (psi): 180000 pounds per square inch
- Minimum Yield Strength: 155000 pounds per square inch
- Thread Diameter: 0.375 inches
- Specification Data: 80205-nas1351 professional/industrial association standard
- Surface Treatment: Oxide
- Surface Treatment Specification: Class 1 military specification single treatment response mil-c-13924
- Thread Class: 3a
- Thread Direction: Right-hand
- Thread Length: Between 1.085 inches and 1.250 inches
- Thread Qty Per Inch (tpi): 16
- Thread Series Designator: Unrc
- Width Across Flats: Between 0.313 inches and 0.316 inches
