Power Flow Exhaust System For Cessna 180 Pre-1956 - Polished Finish
$7250.00/Each
Part# 05-29023
MFR Model# PFS-LE-C180-55
MFR Model# PFS-LE-C180-55
FREE Shipping
Overview
|
Cessna 180 Pre '56 Complete Exhaust System - now for 2 bolt and 4 bolt engines!
Bolt-On Horsepower. Complete replacement of your exhaust system. FAA approved by STC for all Pre '56 Cessna 180 aircraft. Note: This is for aircraft s/n 32150 and below. Higher s/n aircraft use the PMCF exhaust - click here to go to that page. The Power Flow is a versatile, quality constructed, complete replacement of the entire exhaust system on your Cessna. The system is constructed from 321 stainless steel and includes minimal structural welds in the cabin heat section for improved safety. All necessary parts are included for easy installation. Kits are typically installed in a day or two. The system can be installed by one of our Authorized Dealers, by your local A&P / IA, or you can fly to us for the installation. Fly in with a standard Cessna, fly out tuned for maximum performance and efficiency. Our industry leading 60 day money back guarantee means that if for some reason the performance benefits listed above fail to materialize on your Cessna, you can return the system to us within 60 days of its installation for a full refund of your purchase price. Fine Print? You just read it. The model aircraft it was approved for have serial numbers 604, 615 and 30000 through 32150 that are equipped with FAA approved installation instructions of Continental O-470 K, L, R or S model engines. Note: Please let us know if you have the “ tilt down seaplane mount” P/N 0751003-31 (currently not yet in production). Challenger Air Filter The Challenger Air Filter(CP-2180-kit) replaces the disposable foam filter media found on most aircraft with K&N's high efficiency reusable filter media which provides up to three times more air flow to the intake manifold of the engine. our own flight testing has repeatedly confirmed Challenger's published data:
Since the Challenger system significantly improves the intake side of the engine at a very reasonable cost, we consider it to be the perfect complement to our Tuned Exhaust System which significantly improves the exhaust side. A couple of other important pieces of information #1) We strongly recommend that the aircraft's propeller be dynamically balanced to within 0.2 IPS(inches per second) upon installation of the Power Flow System and every two to four years thereafter. If the propeller is dynamically balanced within 25 flight hours of the installation of the Power Flow System and you furnish PFS with copies of the logbook entries confirming this, PFS will extend the warranty on the Tuned Exhaust System from 12 months to 24 months or 500 Flight Hours (whichever occurs first). Doing so every 2 - 4 years thereafter will dramatically improve the useful life and the reliability of every component that is bolted to the engine, including the Power Flow System. #2) The Power Flow System has no service life limit. It is designed and built to last several thousand flight hours and will quite likely be the last exhaust system you need to buy for your aircraft. As with any high performance system however, it must be maintained properly. NOTE: Typical lead time is at least 6 weeks for this exhaust system. Let us know if you are AOG or need the exhaust system faster than 6 weeks. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Benefits
- Make your Cessna 180 a faster, higher flying bird. Similar technology has been used in race cars and motorcycles for years, now it is available for your Cessna 180. By more effectively emptying the cylinders of spent exhaust gases, this high performance exhaust system immediately gives your Cessna 180 the following improvements:
- Fully FAA STC'd tuned exhaust system manufactured under an FAA/PMA
- An increase of RPM in static thrust.
- A take-off roll that is measurably shorter.
- An improvement in the aircraft’s rate of climb.
- An increase in Cruise Speed.
- CHT’s that are cooler across the board.
- Exhaust Gas Temperature (EGT) extremes reduced between cylinder.
- Smoother running engine.
- A Service Ceiling that is higher, with a corresponding improvement in performance at higher density altitudes.

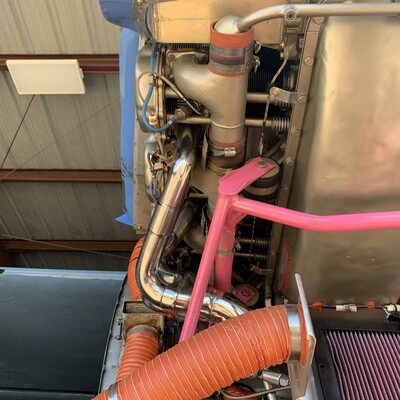

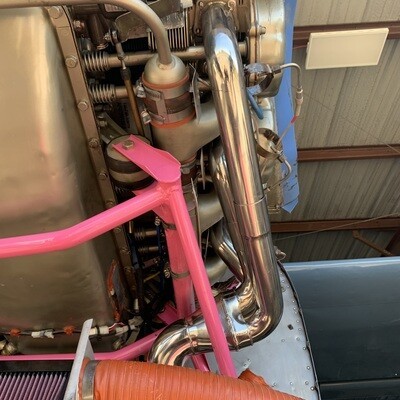

- The back pressure has been greatly reduced with the 1-3/4″ primary tubes being large enough to handle a 550 engine. The primary tubes also incorporate a slip joint to accommodate expansion and contraction and do away with the original 2 part 1-1/2″ beaded end risers that were inherent to leakage and very difficult to remove.
