Piper Nose Strut Seal Kits

$18.65/Each
Part# 05-03603
MFR Model# TP34MS-1

Overview

Piper Main and Nose Strut Seal Kit
MFG PN JMPA34
This is a main and nose strut seal kit for Piper Seneca and Seminole aircraft, models include PA34-200, 200T and PA44-180 and 180T. Kits contain the o-rings, seal, wiper and washer that must be replaced when servicing the strut. This kit is in stock and available for shipping.

PN 05-03603

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

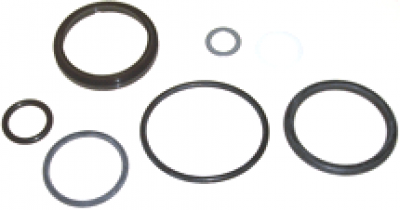

Kit Contents

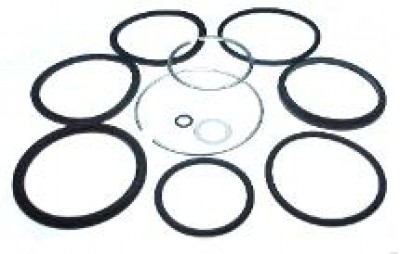

Cessna Nose Strut Kit
  • 1 each AN901-5A Gasket
  • 1 each MCSK172-1F Seal Kit
    • 1 each MC0841200-19 Lock Ring
    • 1 each MC0841200-25 Lock Ring
    • 2 each MCS1628-329 Backup Ring
    • 1 each MCS2418-1 Scraper Ring
    • 1 each MS28775-010 O-Ring
    • 1 each MS28775-221 O-Ring
    • 1 each MS28775-225 O-Ring
    • 1 each MS28775-228 O-Ring
    • 1 each MS28775-329 O-Ring

Piper Main/Nose Strut Kit
  • 1 each 10V90 Wiper
  • 1 eacn AN901-5A Washer
  • 1 each MS28775-210 O-Ring
  • 1 each MS28775-220 O-Ring
  • 1 each MS28775-327 O-Ring
  • 1 each MS28775-227 O-Ring
  • 1 each MS28782-15 Seal
