USMDI Towable Oil Dispensers - 5 Gallons

0 Reviews 0 Answered Questions
Select Model:

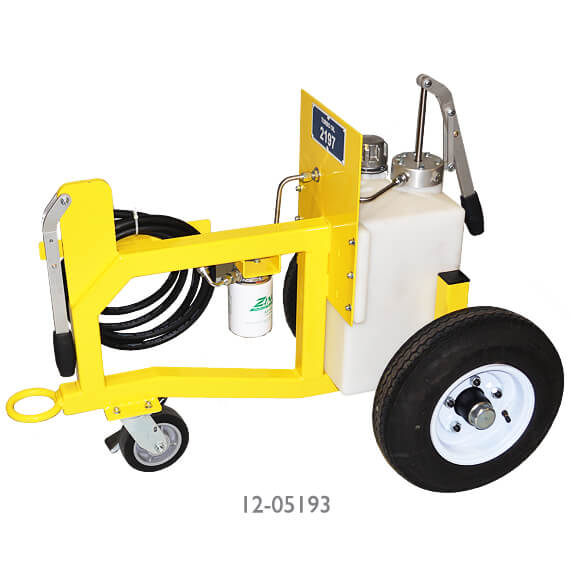

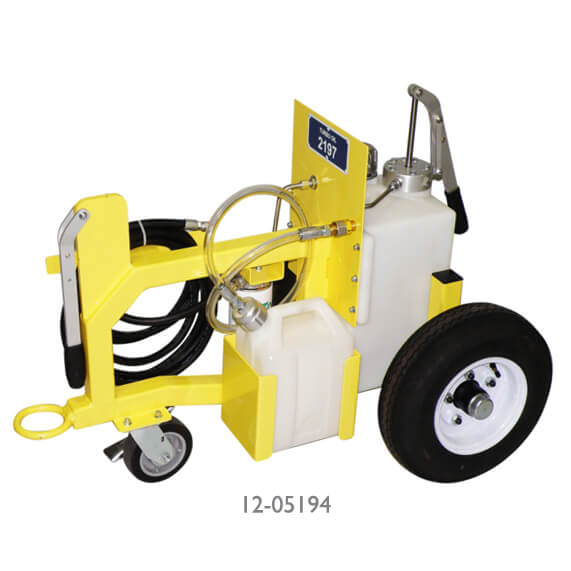

Without Overflow ContainerWith Overflow Container
Quantity
Add to Wishlist

Overview

Established in 1994, U.S. MFG. & DESIGN INC is a Service-disabled Veteran-owned Small Business (SDVOSB) specializing in the design, manufacturing, and distribution of fluid dispensing equipment for the military and airline industries worldwide. USMDI products are reliable and environmentally sound in fit, form, and function. A consistent design philosophy is incorporated into each and every product.
  • Operating Temperature Range: -40°F to 120°
  • Fluid Capacity: 5 Gallon (7.6 L)
  • Pressure Output: 175 PSI (1206.5 KPA)
  • Volume per Stroke: ¼ PINT (120 cc)
  • Hose Length: 15 Foot Hose
  • Filter: 10 Micron Nominal (3 micron Available)

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Product Dimensions: 23 3/4” x 40 1/2” x 24 1/2”
  • Net Weight (Dry): 37.2 lbs. (16.81kg)
  • Shipping Carton: 42 1/2” x 18 1/2” x 24 1/2”

In The Box

  • 5 Gallon Capacity Container
  • Translucent Polyethylene Container
  • With or without Overflow Container
  • Standard USMDI Hi-Tech Double-Seal Hand Pump
  • 15 Foot Hose
  • Color-Coded End Caps & Fluid Signage
  • Compatible Seals and Hoses
  • Heavy Duty Steel Frame
  • Standard Pintle Hook Tow Ring
  • 30 mph Wheel and Bearings
  • Front Caster With Foot Activated Brake
  • Serial Number for easy tracking
  • Quick Disconnect Couplers available
  • Compatible with most Fluids
  • Environmentally Safe
