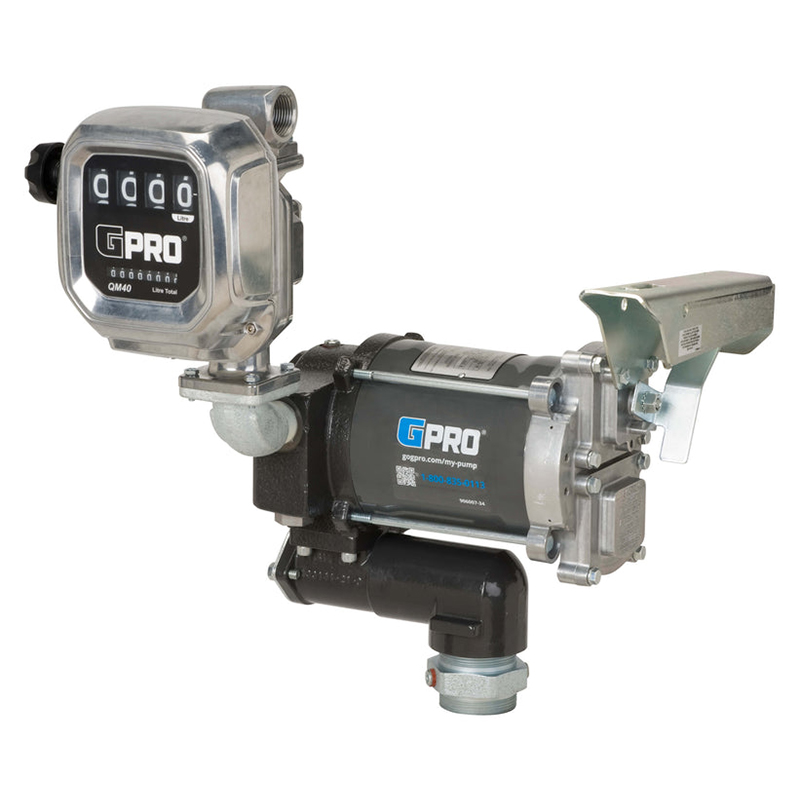

GPI 115v Fuel Transfer Pump With QM Meter

Select Version:
20 Gallons76 Litres
Quantity
Add to Wishlist

Overview

The GPRO PRO20-115/QM is the perfect pump and meter combination that delivers flow rates up to 20 GPM (76 L/min) and provides precision fuel measurements for more accurate readings. The PRO20-115 professional-grade fuel transfer pump is the pump of choice for agricultural and construction applications with low viscosity petroleum fuels such as gasoline, diesel fuel, and kerosene. Available in a variety of configurations to meet your application's needs.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Benefits

  • Extreme accuracy of QM meter
  • Center base inlet with check valve
  • Vacuum breaker ready
  • Extended duty cycle exceeds industry standards
  • Thermally protected motor
  • Field replaceable switch and vanes

Specifications

  • Input: 115V (AC)
  • Fuse: N/A
  • Type: Carbon Vane
  • Motor RPMs: 1725
  • Motor HP: 1/3
  • Duty Cycle: 30 min on/30 min off
  • Inlet: 1 in. FNPT
  • Outlet: 1 in. FNPT
  • Mounting Type: Direct Mount, 2in. male NPT
  • Housing: Powder Coated Cast Iron
  • Approvals: cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada

Applications

  • Stationary Tank
  • Fleet
  • Agriculture
  • Industrial
