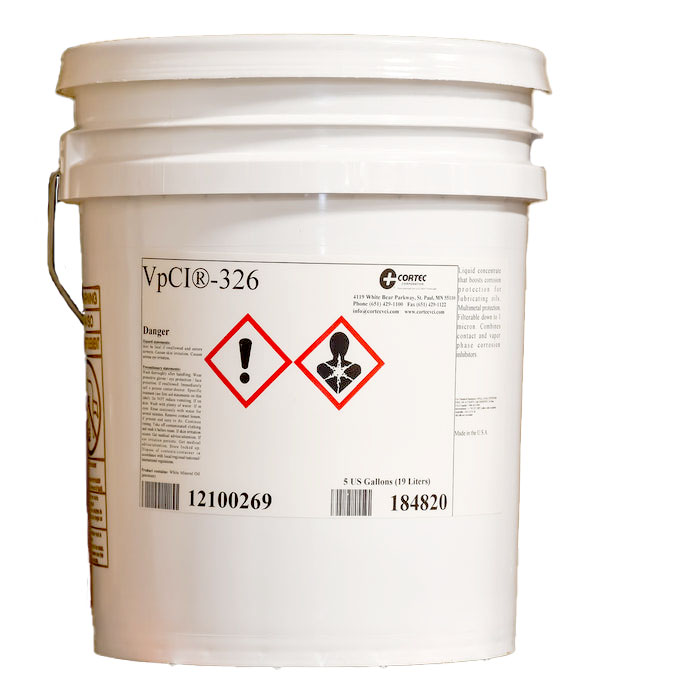

Cortec VpCI-326 Oil Additive

0 Reviews 0 Answered Questions
$897.00/Each
Quantity
Add to Wishlist
Part# 09-04693
MFR Model# VPCI-326 5GL

Overview

VpCI-326 is a corrosion inhibitor oil additive for hydraulic oil and gearbox assemblies. VpCI-326 performs effectively under the adverse conditions of 100% relative humidity, and in the presence of such corrosive species as chlorides, sulfur compounds, or hydrogen sulfide. VpCI-326 contains no hazardous chromates, nitrites, or phosphate inhibitors.

VpCI-326 utilizes the finest paraffinic petroleum distillates as carriers. VpCI-326 possesses an exceedingly high flash point, enhancing in-plant safety when compared to common oil protectants.

VpCI-326 is supplied in concentrate form, which is easily diluted with lubricating, hydraulic, or preservative oils; saving shipping and inventory expense.

VpCI-326 is a broad range corrosion inhibitor not only effective on ferrous metals, but also effective on zinc, aluminum, galvanized steel, copper, cadmium, silver, brass, and many other alloys.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • VpCI-326 provides universal corrosion protection to ferrous and non-ferrous metals
  • VpCI-326 is nitrite-free, non-toxic and thermally stable, providing long-lasting contact and vapor phase corrosion protection
  • With VpCI-326, most lubricants can be upgraded in their anti-corrosion ability providing continuous corrosion protection during operation, standby and shutdown periods
  • Passes through 1 micron filter
  • Conforms to MIL-PRF-46002C
  • Conforms to MIL-I-85062 (Additives to oils)
  • Conforms to MIL PRF-16173E
  • NATO 6850-66-132-6100
  • NSN 6850-01-470-3358

Typical Properties

  • Appearance: Clear to slightly hazy yellow liquid
  • Corrosion Resistance: Up to 24 months
  • Coverage: 960-1456 ft2/gal (24-36 m2/l)
  • Film Type: Oily, paraffinic
  • Film Thickness: 0.5-1 mil (12.5-25 microns)
  • Flash Point: >230ºF (>110ºC)
  • Non-volatile Content: 83-93%
  • pH: 8.7-10.0 (1% solution)
  • Removal Method: Petro-solvents/alkaline cleaners (VpCI-414/416/419)
  • Density: 7.2-7.4 lb/gal
  • (0.86-0.89 kg/l)

Typical Applications

  • Fog interiors with VpCI-326 concentrate at 1 liter/m3 (1 oz/ft3) of enclosed space.
  • VpCI-326 is not recommended for applications involving direct contact.
