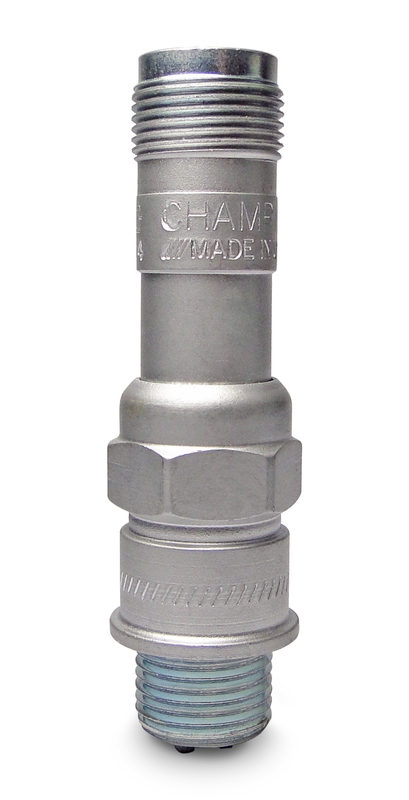

Champion Spark Plugs - RHB37E

4 Reviews 1 Answered Question
Packaged Items
SinglePack of 12
Quantity
Add to Wishlist View More In This Series →

Overview

In the early 1900s, small planes flew with single ignition systems powered by adapted automobile engines using Champion-brand automotive spark plugs. By the 1920s, the company had developed innovative spark plugs designed specifically for the aviation industry.

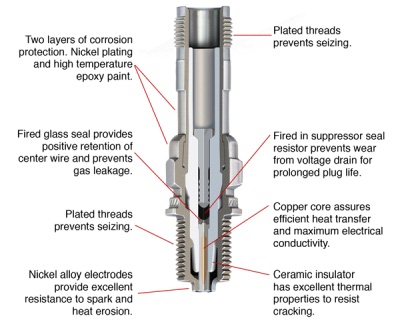

Champion Aerospace designs and manufactures Champion-brand piston-engine ignition components for both OEM and aftermarket for general aviation aircraft applications. Every spark plug manufactured has built-in design advantages that assure longer life and greater reliability.

A typical spark plug number with symbol explanation

1. Resistor None--No Resistor R--Mil-Spec. Resistor-Erosion protection
2. Barrel Style None -- Unshielded E -- Shielded 5/8"-24 Thread
H -- Shielded 3/4"-20 Thread (All Weather Plug)
3. Mounting Thread -- Reach -- Hex Size B-18mm 13/16" / 2.06cm 7/8" / 2.22cm M--18mm 1/2"/1.27cm 7/8"/2.22cm
L-14mm 1/2"/1.27cm 13/16/2.06cm U­18mm 1-1/8"/2.85cm 13/16/2.06cm
J -- 14mm 3/8"/0.95cm 13/16/2.06cm
4. Heat Rating Position Low number--cold High number--hot
5. Electrode Design None-Conventional single E -- Two prong massive
N -- 4 prong massive
W -- Fine wire (Iridium) B --2 prong massive, Tangent to Center
P--Fine wire (Platinum)


* Shielded barrel thread size. Check barrel size - 5/8x24 or 3/4x20 threads before ordering and select proper plug number, See page 236 for Sparkplug Application Table.

** The "Iridium S" sparkplugs replace the Platinum and "W" Iridium types. Increased bore diameter improves scavenging action. Greater clearance volume can accept more combustion deposits. Single Iridium electrode offers greater resistance to lead attack. Easy to clean Easy to gap

NOTE:
Spark plugs are shipped in factory sealed plastic cases. Opened spark plug cases make the spark plugs non-returnable. Please do not open any spark plug until you are sure you have received the correct spark plugs for your application.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

Videos

https://www.youtube.com/embed/B2qqO6Dk4Dc?si=9BW_z6rkTMHTwlnO
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

I heard negative things about Champion Spark Plug. I have used it twice and I am very happy with its performance of my T-28B

Abel N Verified Purchase

Champion Spark Plug RHB37E
June 15, 2024

Mark G Verified Purchase

Champion Spark Plug RHB37E (Box Of 12)
January 17, 2024

works well

Greg O Verified Purchase

Champion Spark Plug RHB37E (Box Of 12)
May 26, 2023

Products are installed and working well. Seat rail AD is now completed . Thanks

Charles C Verified Purchase

Champion Spark Plug RHB37E
May 17, 2023

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do the spark plugs come with gaskets?

Yes, each spark plug includes one gasket.
