Anti-Splat Exhaust Heat Shield Systems

Select Length:
4 Inch6 Inch12 Inch
Select Diameter:
.5 - 1.25 Inch1.5 - 2 Inch2.25 - 2.5 Inch
Quantity
Add to Wishlist

Overview

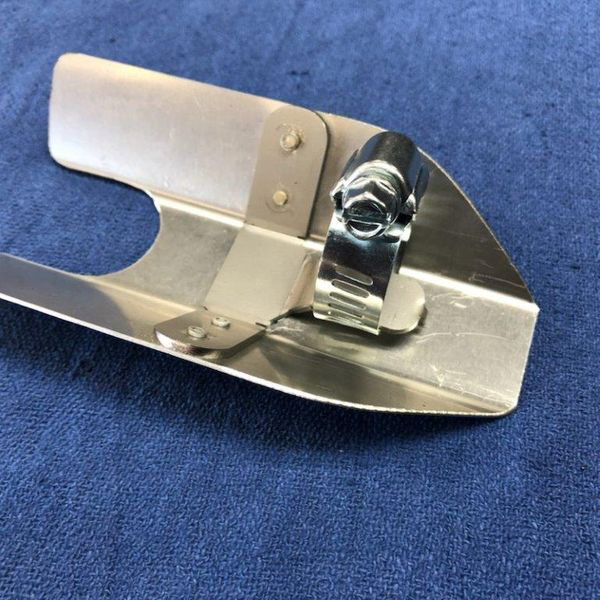

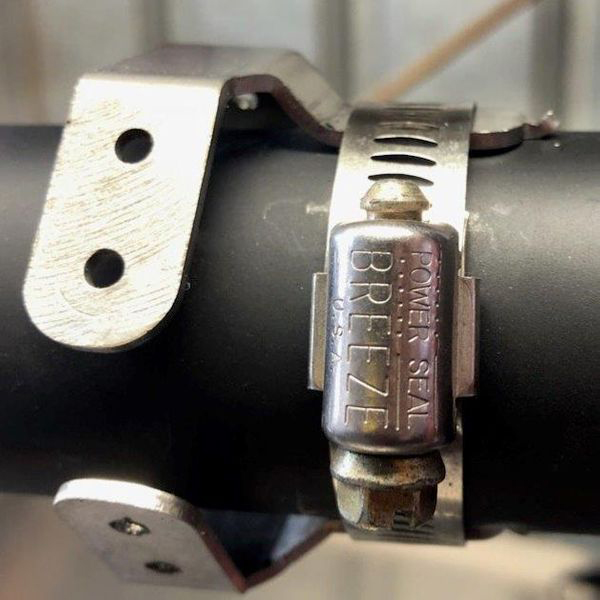

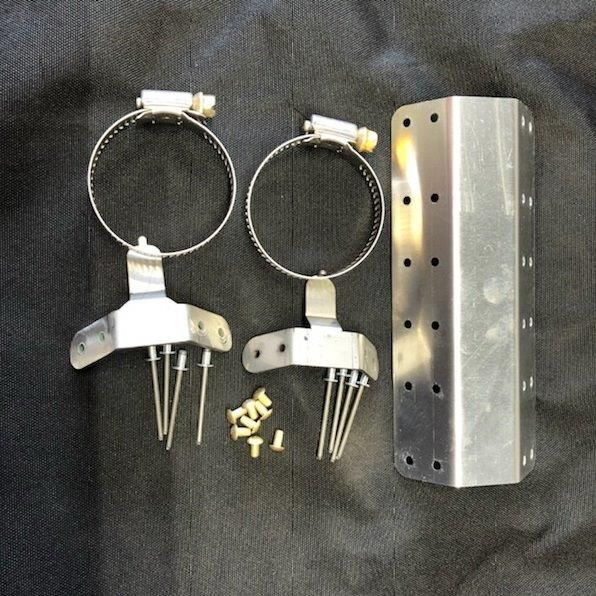

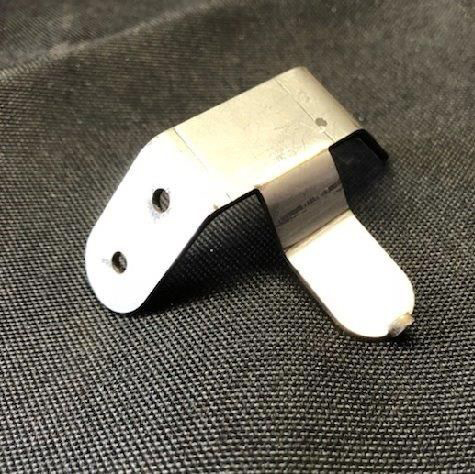

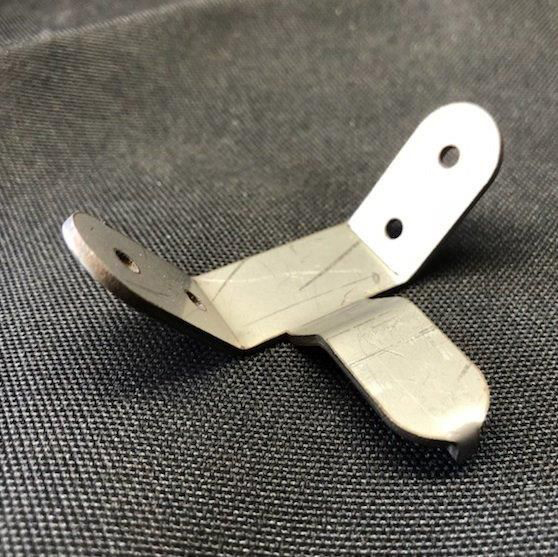

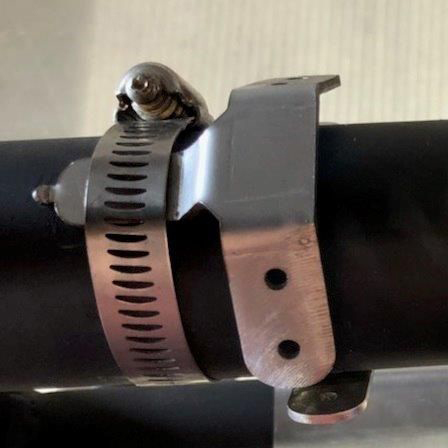

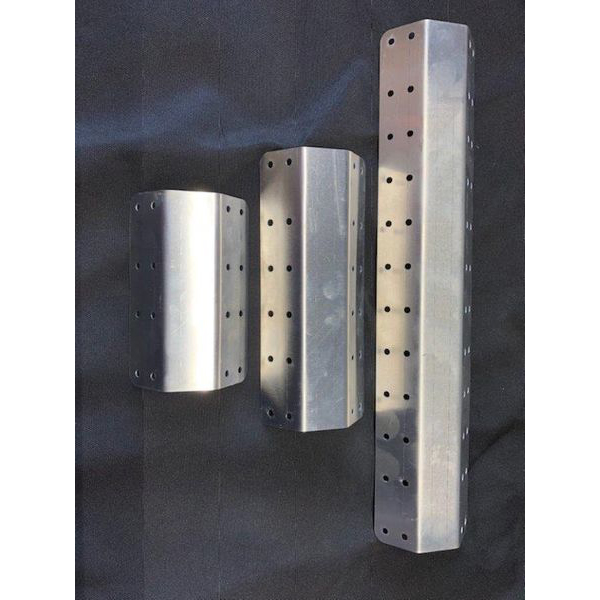

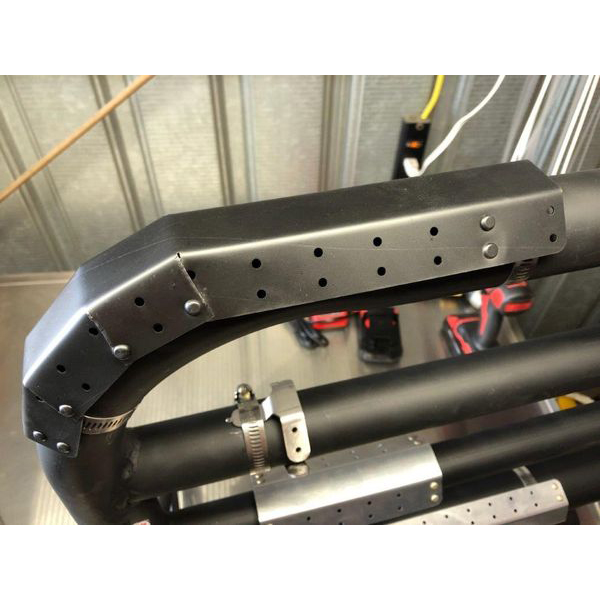

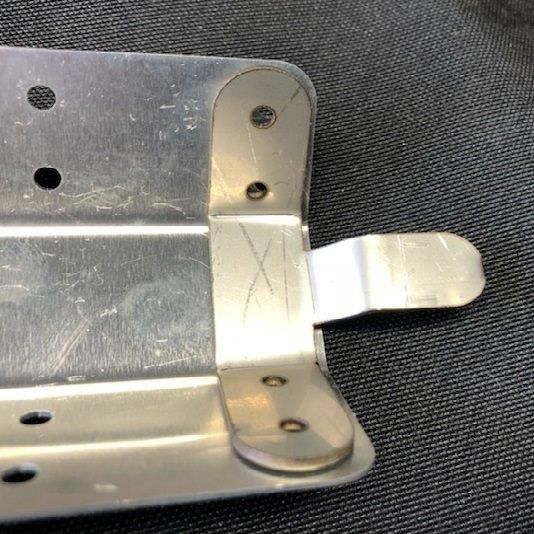

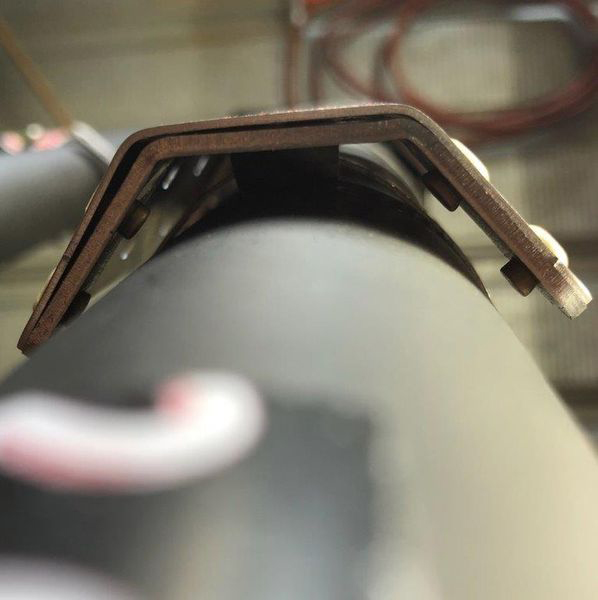

Heat Shield system is very easy to install and can be tailored to your specific needs and application, to control reflected heat in your engine compartment. These block, and control unwanted radiated heat from hot exhaust tubing, thus protecting your cowl and engine accessories from destructive high temperatures. They are held fast in place, approximately ¼” off the hot surfaces with hose clamps around the pipes, or to the specific accessories, hose, line, tubes or item you wish to protect. Unlike most products in this category, they will not shake off or crack in a few hours. The attach brackets are made from .062” 14 ga. 301 stainless steel and will outlast your aircraft. The aluminum heat shields are 6061-T6 .032” pre-punched with properly spaced mounting and ventilation holes every one inch. This makes custom trimming and fitting to your needs very simple. The attach brackets can be fitted to the shields with .125” squeeze rivets, or you can use .125” stainless pop rivets with steel pull pins via the pre-punched holes. These heat shields are available in 4”/6”/12” lengths, and you can specify the tubing size you are going to mount to for proper clamp sizing.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do these come with clamps and pop rivets included?

Yes they are included.
