Model Number/Exhaust Assembly | Description | Part Number | Price | Buy |
---|---|---|---|---|

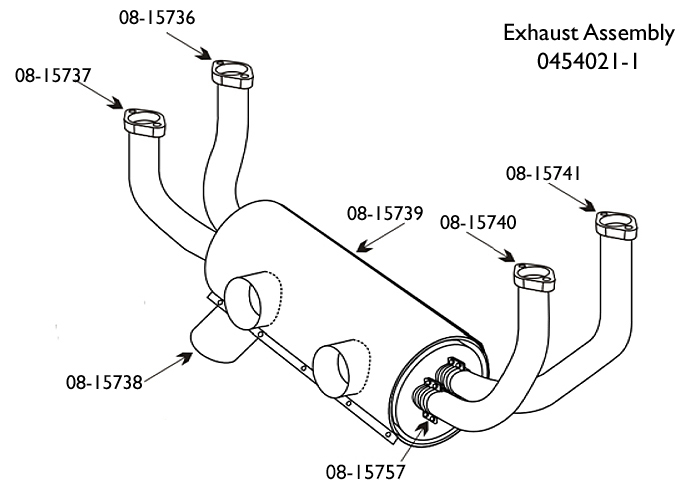

0454023-3 / 0454021-1 | Riser Assembly RH AFT | 08-15736 | $282.95 | |
0454023-4 / 0454021-1 | Riser Assembly RH FWD | 08-15737 | $282.95 | |
0454009-6 | Muffler Weld Assembly | 08-15738 | $685.00 | |
0454010-9 / 0454021-1 | Shroud Assembly (2 Piece) | 08-15739 | $954.00 | |
0454023-2 / 0454021-1 | Riser Assembly LH FWD | 08-15740 | $282.95 | |
0454023-1 / 0454021-1 | Riser Assembly LH AFT | 08-15741 | $282.95 | |
1555014-2 / 0454021-1 / 0454011-200 | Riser Clamp Half | 08-15757 | $39.95 | |

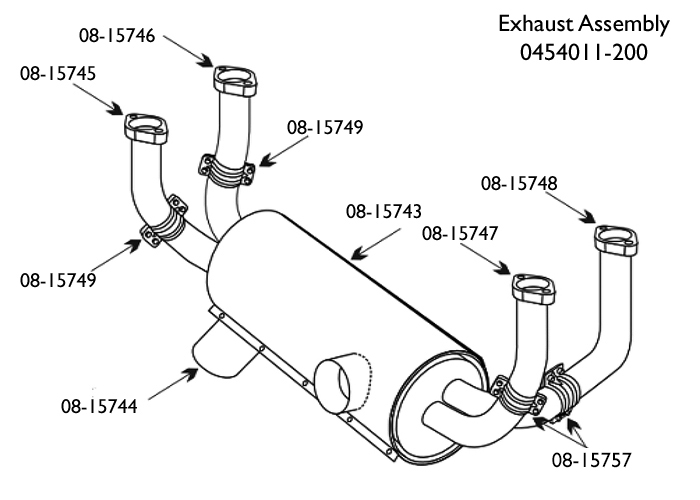

0454010-1 / 0454011-200 | Shroud Assembly (2 Piece) | 08-15743 | $998.00 | |
0454002-4 / 0454011-200 | Riser Assembly RH FWD | 08-15745 | $310.00 | |
0454002-2 / 0454011-200 | Riser Assembly RH AFT | 08-15746 | $310.00 | |
0454002-11 / 0454011-200 | Riser Assembly LH FWD | 08-15747 | $310.00 | |
0454002-10 / 0454011-200 | Riser Assembly LH AFT | 08-15748 | $310.00 | |
0454013-1 | Carb Heat Shroud | 08-15758 | $770.00 |
