Rotax 912 | 914 Ul Engine Magneto - Generator | Pick Up | Rectifier Regulator

1 Review 0 Answered Questions
From $0.23 to $872.00

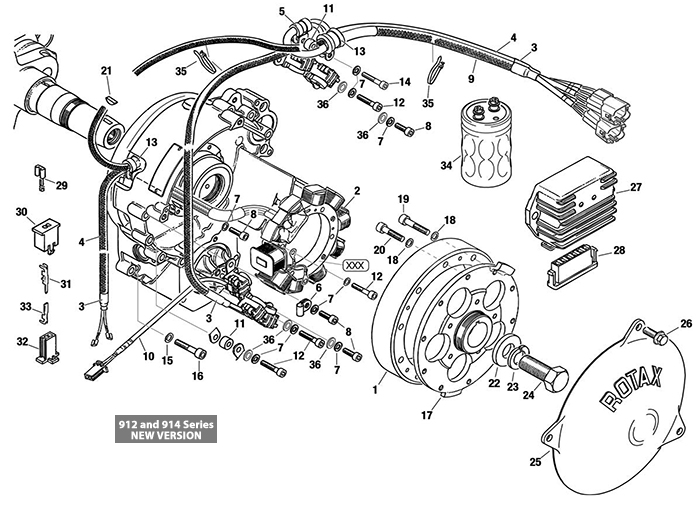

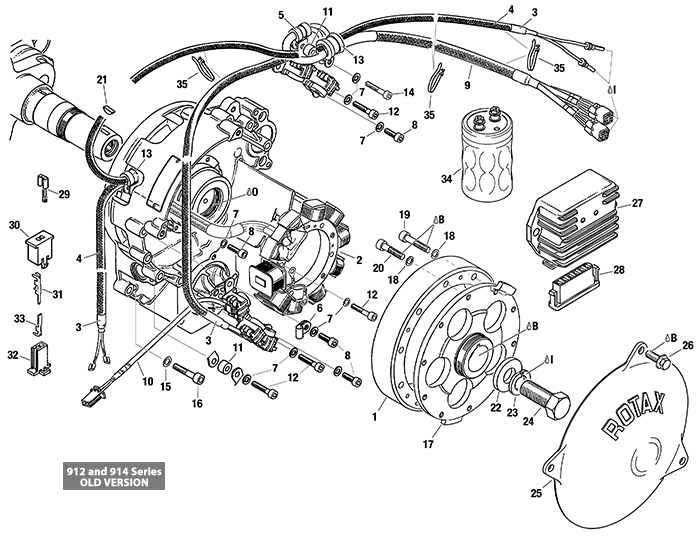

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Number Description Qty Req. 912 UL Qty Req. 912 ULS Qty Req. 914 UL PN Price Buy
1965-192MAGNETO RING111
15-03842
$869.00
Quantity
3860-530SHRINK HOSEARARAR
15-01711
$40.15
Quantity
9, 36965-176TRIGGER COIL KIT 4-POLE1d1d1d
15-03831
$872.00
Quantity
11847-660SPACER 5.2/12/7.4444
15-01347
$6.55
Quantity
13851-250CABLE CLAMP 15/M5222
15-01527
$4.45
Quantity
14940-881ALLEN SCREW M5x30111
15-03233
$0.35
Quantity
15945-831LOCK WASHER A6777
15-09800
$0.23
Quantity
17966-872FLY WHEEL HUB1a1a
15-03975
$348.00
Quantity
18845-381LOCK WASHER A6101010
15-01303
$0.35
Quantity
19840-883ALLEN SCREW M6x30555
15-01148
$0.90
Quantity
20840-863ALLEN SCREW M6x25555
15-01146
$0.89
Quantity
21246-571WOODRUFF KEY 4x5111
15-08726
$1.65
Quantity
35866-710CLAMP 142x2.5 MM333
15-01869
$0.79
Quantity
36827-800WASHER A 5,57f7f7f
15-00860
$0.27
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a With modified trigger, instead of 4° before top dead center --> -3° after top dead center
  • b SI-912-013 / SI-914-016 standardization of the ignition unit
  • c Trigger coil kit with elongated hole for adjustment and 6-pole connector incl. 7 pcs. part no. 827-800
  • d 4-pole connector and trigger coil without alignment incl. 7 pcs. part no. 827-800. / Replaced trigger coil kit part no. 965-177. / See Maintenance Manual Heavy of the respective engine type, current issue.
  • e Trigger coil for rev. counter to part no. 965-176 and part no. 965-179
  • f At all trigger coils with longhole


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Notes

No.
Status
Part No.
 Description
912 UL
912 ULS
914 UL
Price
16
xxxxxx see Chapt. 75-20-00
7
7
7
*

Engine Type

ENGINE
TYPE
SERIAL NUMBER FROM - UP TO
SET
RETROFIT KIT
PART NO.
PRICE
912 UL
3,792.501
 3,792.555
D
888-716
$1015.00
4,005.300
 4,152.111
E
888-718
$1015.00
3,792.556
 4,005.299
C
888-714
$1325.00
4,152.112
 4,403.282
B
888-712
912 ULS
4,425.001
 4,425.029
A
888-671
914 UL
4,417.503
4,417.783
B
888-712
