Rotax 912 Ul Fuel Pump Assembly / Fuel Hose Assembly / Airbox Assembly

1 Review 0 Answered Questions
From $0.27 to $236.95

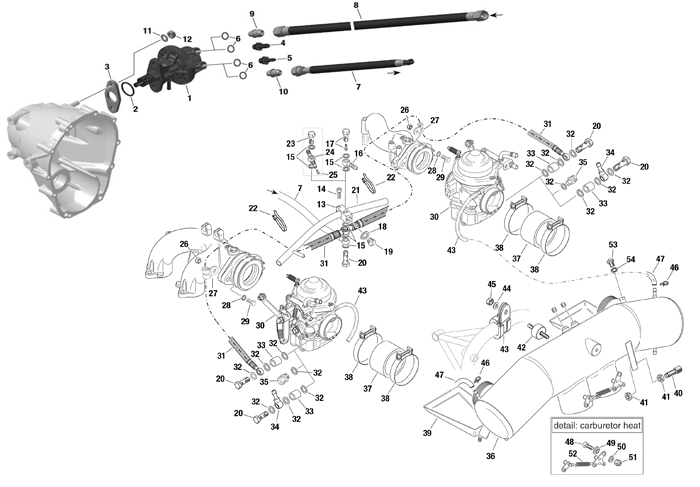

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Number Description Qty 912 UL Qty 912 ULS Part Number Price Buy
13851-328FUEL DISTRIBUTION BLOCK(1)(1)
15-10667
$236.95
Quantity
16956-312HOSE NIPPLE 3/4(1)(1)
15-03527
$20.65
Quantity
19641-733SLOTTED HEAD SCREW M10X1X8(1)(1)
15-00671
$7.00
Quantity
22866-716CABLE TIE 550X8.0(2)(2)
15-01870
$0.42
Quantity
23941-780BANJO BOLT M8X1X17(1)(1)
15-03278
$6.84
Quantity
35941-853FUEL LINE CONNECTOR1j1j
15-03286
$54.75
Quantity
41942-541HEX. NUT M6x0.75 HIGHT 3 MM(2)(2)
15-09504
$6.50
Quantity
43853-010CABLE CLAMP 32/M6(1)(1)
15-01598
$7.45
Quantity
44927-941WASHER 6.0/12/1(1)(1)
15-02997
$0.43
Quantity
48241-847 ALLEN SCREW M5X12(1)(1)
15-00194
$17.50
Quantity
50827-800WASHER A 5.5(1)(1)
15-00860
$0.27
Quantity
51842-030LOCK NUT M5(1)(1)
15-01239
$2.39
Quantity
53240-771HEX.SCREW M6X10(1)(1)
15-00153
$0.35
Quantity
Subtotal $0.00
Add to Wishlist

Overview

  • a   Marked with S/N. Inclusive suction- and pressure line;
  • b   Marked with S/N.
  • c   With fuel pressure gauge connection; At conversion from 956-312 to 956-602 remove jet 963-820
         from banjo bolt.
  • d   Marked with yellow dot, with orifice;
  • e   Drip tray for airbox part no. 867-758, 667-162 and 667-167
  • f    Drip tray for airbox part no. 867-758
  • g   For retrofitting following Service Bulletin has to be noticed SB-912-044 current issue
  • h   Optional with connection flexible fuel lines;
  • i    See SI 912-020 current issue
  • j    For steel pipe


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Notes

No.
Status
Part No.
 Description
912 UL
912 ULS
Price
1-3,6-10
s.v.
867-935
893-114 FUEL PUMP ASSEMBLY
1kl
1kl
NLA
21
xxx-xxx
SEE FIG. 1 / POS. 9
1
1
-
28
xxx-xxx
SEE FIG. 1 / POS. 16
(1)
(1)
-
29
xxx-xxx
SEE FIG. 1 / POS. 17
(6)
(6)
-
30
xxx-xxx
SEE CHAPT. 73-00-00 FIG. 1
1
1
-
39
874-308
DRIP TRAY SET
(1)f
*
40
241-440
 ADJUSTMENT SCREW M6X0.75
(1)
(1)
*
45
842-040
LOCK NUT M6
(1)
(1)
*
