No. | Part No. | Description | Price | Buy |
---|---|---|---|---|
2 | 07-00442 | Atomizer | $34.50 | |
3 | 07-00443 | Needle Jet | $19.50 | |
4 | 05-01994 | Jet Needle | $25.85 | |
5 | 963-140 | Idler Jet | $38.50 | |
6 | 963-155 | Air Screw | $16.50 | |
8 | 07-00446 | Piston | $79.75 | |
9 | 07-00447 | Jet Stock | $26.50 | |
10 | 261-625 | Screen | $13.50 | |
13 | 963-160 | Mix Screw | $16.50 | |
14 | 938-640 | Spring | $3.90 | |
16 | 07-00451 | Cover | $29.99 | |
18 | 241-430 | Screw | $1.96 | |
21 | 260-370 | Grommet | $3.65 | |
26 | 261-705 | Float Needle | $45.85 | |
28 | 07-00454 | Bowl | $53.75 | |
30 | 963-180 | Spring Cup | $13.50 | |
39 | 963-740 | Piston | $14.50 | |
40 | 268-850 | Sleeve | $5.65 | |
41 | 661-050 | Spring | $2.65 | |
42 | 963-750 | Housing | $19.50 | |
46 | 268-847 | Piston | $33.50 | |
48 | 261-770 | Housing | $131.95 | |
50 | 07-00455 | Lever | $26.50 | |
53 | 261-200 | Nut | $1.95 | |
54 | 256-033 | Vent Line | $15.50 |

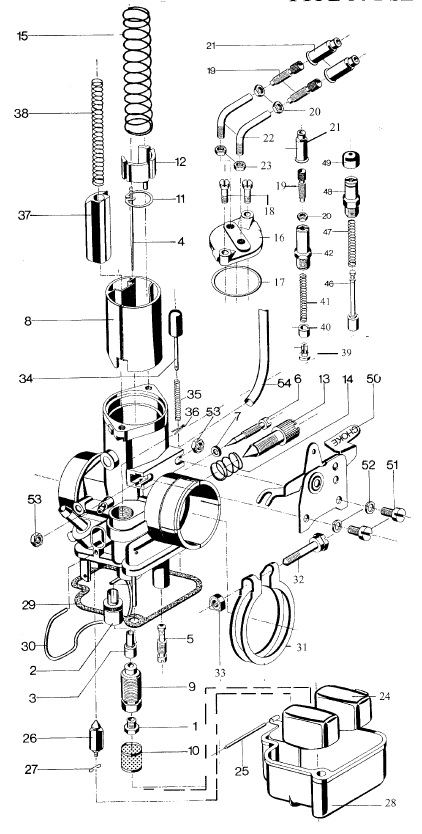

Replacement Parts for Bing Type 84 Carburetor |
