Rotax 912 80Hp Carb Repair Kit

$329.00/Each
Quantity
Add to Wishlist
Part# 15-05914
MFR Model# CV#4 2.72

Overview

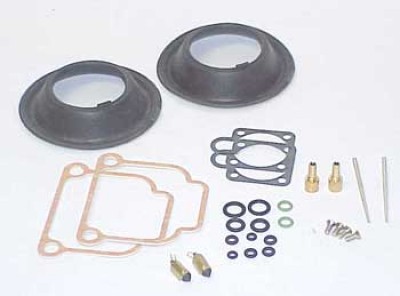

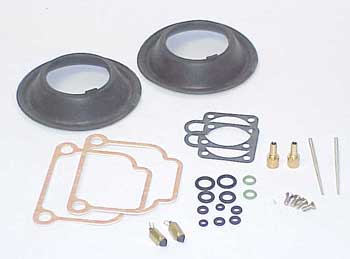

Standard Bing Repair Kit for Rotax 912ULS 80 Horsepower - (13594)

The standard repair kit contains everything that normally needs replacement on the 912ULS 80HP carburetors.

Kit contains:
2@ - #261-707 Valve w/ viton tip
2@ - #261-710 Clip
2@ - #961-215 Jet Needle
2@ - #261-608 Needle Jet (2.70 100hp)
2@ - #830-727 Float Bowl Gasket
2@ - #950-030 Gasket
4@ - #941-200 Screw
2@ - #430-800 O-Ring
2@ - #950-020 O-Ring
4@ - #831-713 O-Ring
2@ - #950-430 O-Ring
2@ - #861-115 Diaphragm


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Works great for the 912ULS

Kentucky F Verified Purchase

Bing Cv#480 HP 2.72 Dual Carburetor Kit Cv#4 2.72

October 25, 2024

Leonid P Verified Purchase

Bing Cv#480 HP 2.72 Dual Carburetor Kit Cv#4 2.72

January 7, 2024

Looks nice will not install to next spring.

Phillip H Verified Purchase

Bing Cv#480 HP 2.72 Dual Carburetor Kit Cv#4 2.72

August 15, 2023

Fits Bing 64 carb. If you order the Bing 64 carb kit it will show back ordered. If you order this kit it is in stock. Has everything needed including that tiny clip for the needle that everybody looses.

Time A
October 20, 2022

This kit is incorrectly labelled. The kit I received was for the 80 hp Rotax with the 2.72 needle jet instead of the standard 2.70 needle jet used in the 100 hp Rotax. I had to order the 2.70 jet separately and it is not stocked so must wait.

James H
August 4, 2023

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this include 861-116 now?

Yes, the carburetor overhaul kit, PN:15-05914 does include the rubber diaphragms.

Q: One Kit is for Both Carburators ?

Kit includes:
2 x - #261-707 Valve w/ viton tip
2 x - #261-710 Clip
2 x - #961-215 Jet Needle
2 x - #261-608 Needle Jet (2.70 100hp)
2 x - #830-727 Float Bowl Gasket
2 x - #950-030 Gasket
4 x - #941-200 Screw
2 x - #430-800 O-Ring
2 x - #950-020 O-Ring
4 x - #831-713 O-Ring
2 x - #950-430 O-Ring
2 x - #861-115 Diaphragm
