| Model # | Description | Part Number | Price | Buy |
|---|---|---|---|---|
| 7217009 | LED Light, 2"x3", 14-28VDC, 150º Beam Pattern | 11-20286 | $277.20 | |
| 0772170 | LED Light, 2"x3", 14-28VDC, 10º Beam Pattern | 11-20287 | $277.20 | |
| 0772170 | LED Light, 2"x3", 14-28VDC, 20º Beam Pattern | 11-20288 | $277.20 | |
| 0772170 | LED Light 2"x3",14- 28VDC, 30º Vertical Beam Pattern | 11-20289 | $277.20 | |
| 0772170 | LED Light, 2"x3", 14-28VDC, 150º Beam Pattern | 11-20290 | $277.20 | |
| 0772170 | LED Light, 2"x3", 14-28VDC, 10º Beam Pattern | 11-20269 | $277.20 | |
| 7217002 | LED Light, 2"x3", 14-28VDC, 20º Beam Pattern | 11-20270 | $277.20 | |
| 7217003 | LED Light, 2"x3", 14-28VDC, 30º Vertical Beam Pattern | 11-20271 | $277.20 |
Overview
|

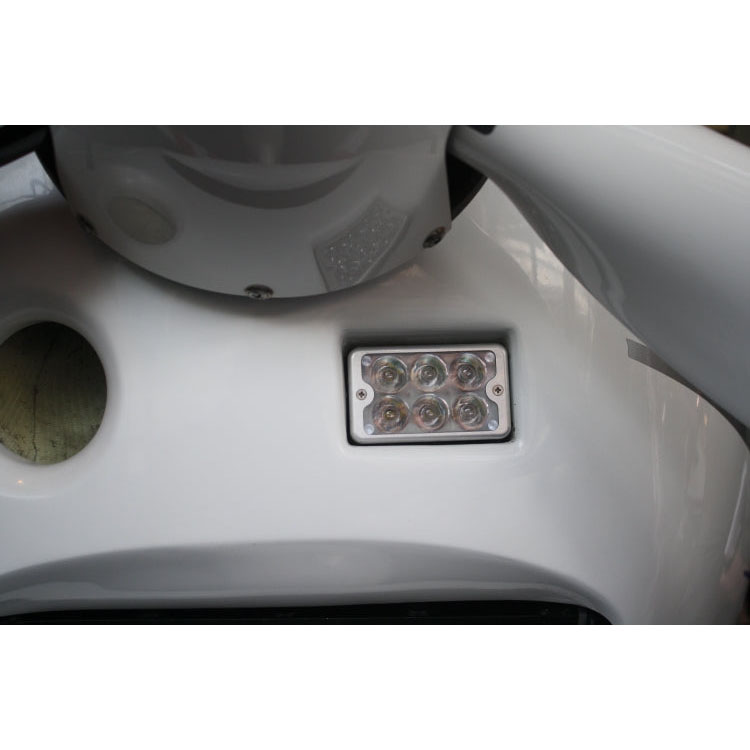

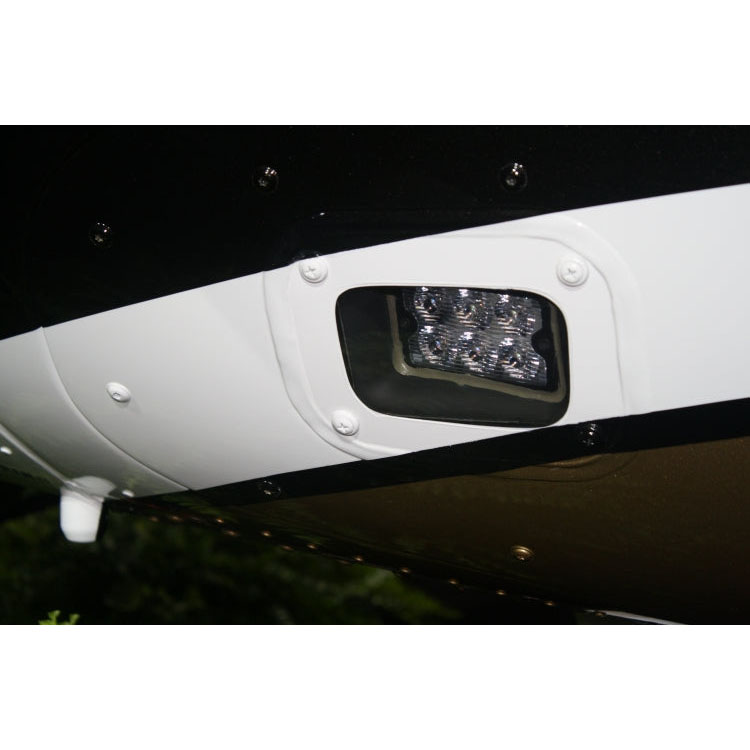

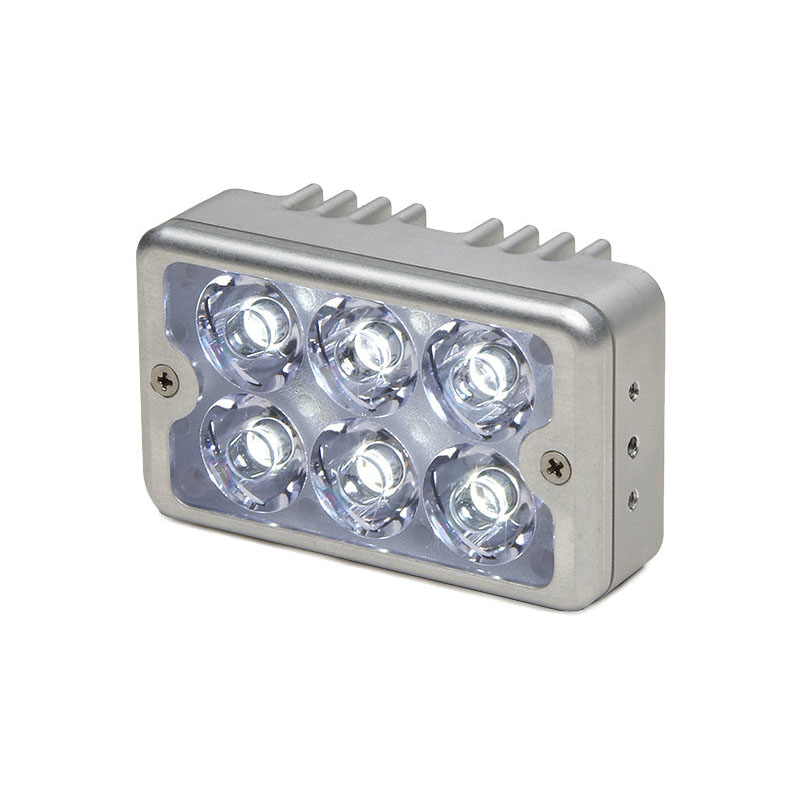

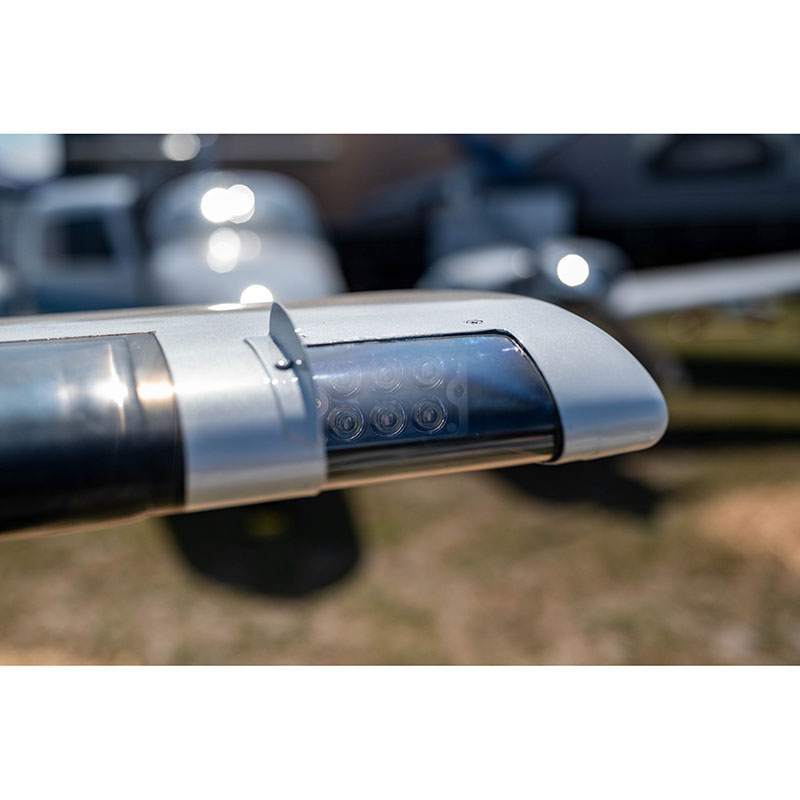

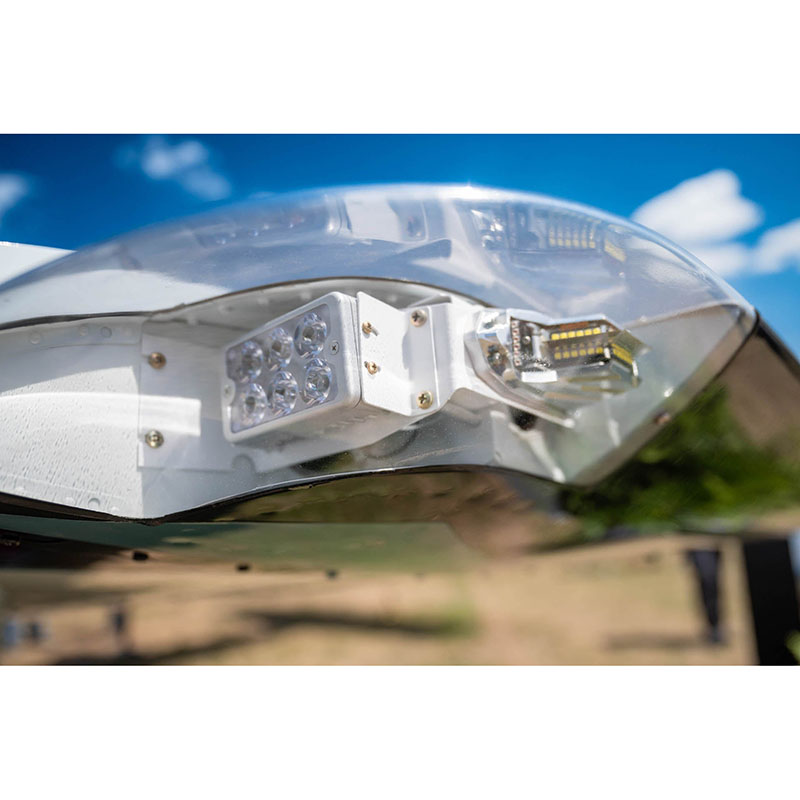

Experience enhanced illumination with our 72170 Series LED recognition light, tailored for diverse aircraft needs. Reap the myriad benefits of LED technology: no EMI/RFI interference, energy efficiency with low current consumption, minimal heat generation, and impressive longevity. Especially suited for areas sensitive to vibrations. This product comes with pre-attached flying leads and offers a variety of beam spreads. An upgraded version with an integrated MS connector is also at your disposal.
Upgrade Alert: The 72170 seamlessly replaces the 71125 series, shining 2.5 times brighter. Now catering to diverse power needs with its variable voltage feature, ranging from 14-28VDC. Swap out your 71125 with the 72170 for a brighter, more efficient lighting solution. *Brackets and mounting hardware not included* |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- Power Consumption: 1.1 Amps @ 14 Volts, 0.56 Amps @ 28 Volts
- Weight: 0.36 lbs. (163gm)
- Overall Width: 3.25 (83mm)
- Overall Depth: 1.25 (32mm)
- Overall Height: 1.95 (50mm)
Cross Reference Chart
| 71125 Model Number | 71125 Part Number | 72170 Model Number | 72170 Part Number |
|---|---|---|---|
| 7112510 | 01-0771125-10 | 72127001 | 01-0772170-01 |
| 7112520 | 01-0771125-20 | 72127001 | 01-0772170-01 |
| 7112511 | 01-0771125-11 | 7217002 | 01-0772170-02 |
| 7112521 | 01-0771125-21 | 7217002 | 01-0772170-02 |
| 7112523 | 01-0771125-23 | 7217003 | 01-0772170-03 |
| 7112512 | 01-0771125-12 | 7217009 | 01-0772170-09 |
| 7112522 | 01-0771125-22 | 7217009 | 01-0772170-09 |
| 7112552 | 01-0771125-52 | 7217041 | 01-0772170-41 |
| 7112550 | 01-0771125-50 | 7217042 | 01-0772170-42 |
| 7112553 | 01-0771125-53 | 7217043 | 01-0772170-43 |
| 7112551 | 01-0771125-51 | 7217049 | 01-0772170-49 |
