- Photo may represent series and not specific product
- SHARE
| WAT No. | Description | PN | Price | Buy |
|---|---|---|---|---|
| 9072411 | LED Anti-collision light (lower 5-Hole mount) cable pigtail, 28V, Class III Lower (9008811) | 11-16094 | $2686.00 | |
| 9072412 | LED Anti-collision light (upper 5-Hole mount) cable pigtail, Red 28V Class III (9008812) | 11-16095 | $2653.00 | |
| 9072413 | LED Anti-collision light (Citation 5-Hole rudder mount, 2.25 lbs.) with connector, Red 28V (9008813) | 11-16096 | $2595.00 | |
| 9072414 | LED Anti-collision light (5-Hole rudder mount, Barons, 2.25 lbs.) cable pigtail, Red 28V (9008814) | 11-16097 | $1375.00 | |
| 9072415 | LED Anti-collision light (lower 5-Hole mount) with MS27508E10A-5P connector, Red 28V (9008815) | 11-16098 | $2265.00 | |
| 9072416 | LED Anti-collision light (upper 5-Hole mount) with MS27508E10A-5P connector, Red 28V (9008816) | 11-16099 | $2686.00 | |
| 9072417 | LED Anti-collision light (lower 5-Hole mount) cable pigtail, 2 lens drain holes (Hawkers), Red 28V (9008817) | 11-16100 | $2686.00 | |
| 9072418 | LED Anti-collision light (upper 8-Hole mount) cable pigtail, Red 28V (9008818) | 11-16101 | $2653.00 | |
| 9072419 | LED Anti-collision light (lower 8-Hole mount) cable pigtail, Red 28V (9008819) | 11-16102 | $2642.00 |
- JUMP TO
- Overview
- Specifications
- Reviews
- Q&A
Overview

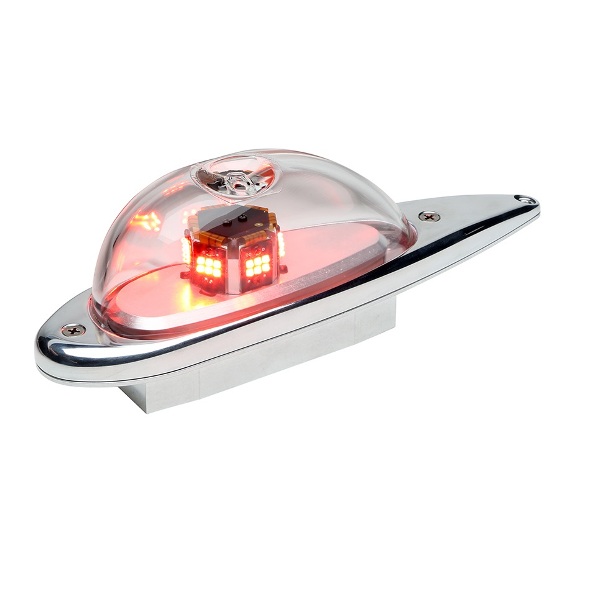

| Model 90724 Series is a self-contained LED anti-collision beacon. It's solid-state circuitry and LED light source obsolete the "old style" mechanical oscillating beacons as well as the Whelen 90044 Series quartz halogen flashing beacons. Benefits include no moving parts, no EMI/RFI, no inrush current spikes and crisp on off cycles. There are several models available to provide compatibility with existing mounting patterns and profiles, thus eliminating the need to alter the aircraft. |
 |
WARNING: This product may expose you to chemicals including Lead, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Specifications
- Power Consumption: 0.45 Amps @ 28 VDC
- LED Color: Aviation RED
- Weight: 1.8 lbs (816gm) (unless otherwise noted)
- Exposed Height: 2.70" (69mm)
- Lens Color: Clear glass
- Replaces: Whelen: 90044 Series and Grimes: G9950-( ), 40-0100-( ), 30-2140-( ), 40-0117-( ), 40-0127-( ), 30-2647-( )
Reviews
Great product, works well and simple to fit.
Verified Purchase
Whelen 9072414 LED Anti
Drop in replacement for our Citation II.
Verified Purchase
Whelen 9072413 Anti Led
