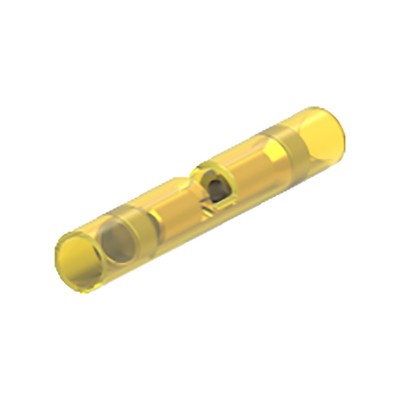

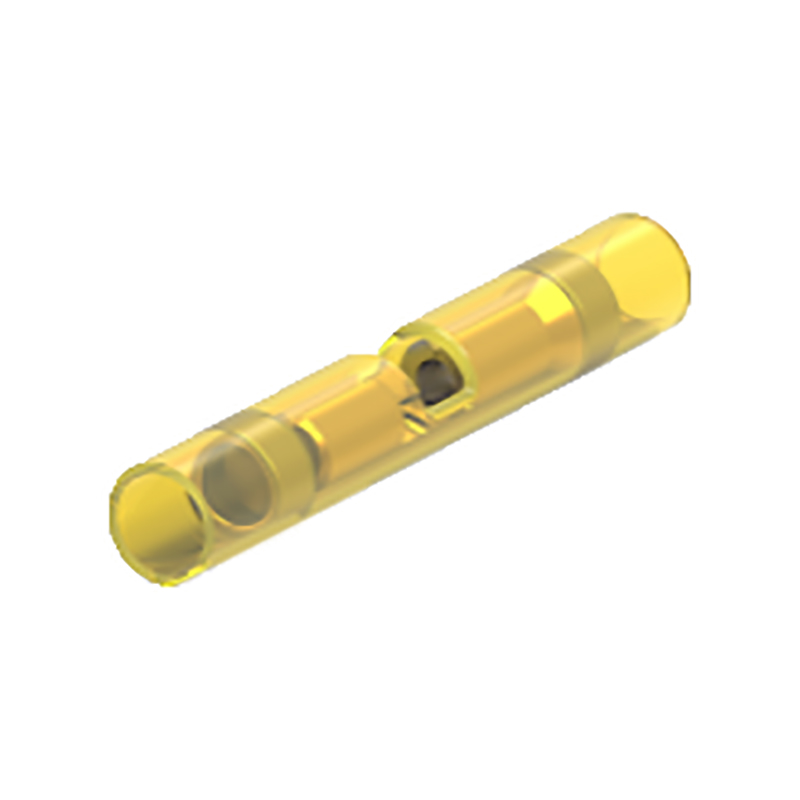

TE Butt Splice Yellow 323994 PIDG 26-22 AWG
MFR Model# 323994
FREE Shipping
Overview
| The 323994 is PIDG series Fork/Spade Tongue Terminal designed for uniform reliability in the most difficult circuit environments. They consist of a tin-plated copper or tin-plated phosphor bronze body for spring spades, plus a copper and coloured insulation sleeve fitted over a terminal barrel. The specialized design of tool dies and the construction of the terminal allows for uniform insulation thickness under crimping pressure, transmitting this pressure evenly to the centre of the crimping area. The body has serrations for maximum contact and tensile strength. The insulation sleeves and the corresponding tooling are colour-coded by wire-size for easier identification. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Splice
- Not Sealed
- 1 & 2 Class
- Splice Type = Butt
- Butt Splice Type = Standard
Specifications
- Supplier: te connectivity / amp brand
- Unit of Measure: Per Each
- RoHS: Yes
- COO: US
- ECCN: EAR99
- Type: Splice Terminal
- Gender: N/A
- Tab Size: N/A
- Stud Size: N/A
- Dimension: 22.61 mm
- Wire Size:24-26 AWG
- Color: Yellow
- Operating Temperature: N/A
Reviews
Actually used these on small gauge under glow led lighting on my car. Worked very well. Very good product. Thanks.
Verified Purchase
TE Butt Splice Yellow 323994 PIDG 26 - 22 Awg
