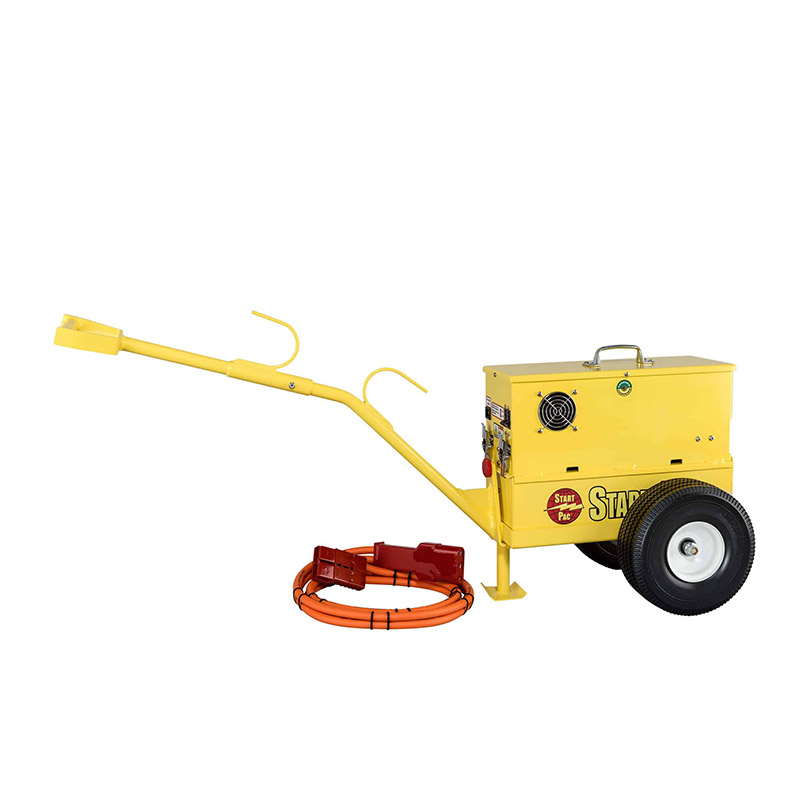

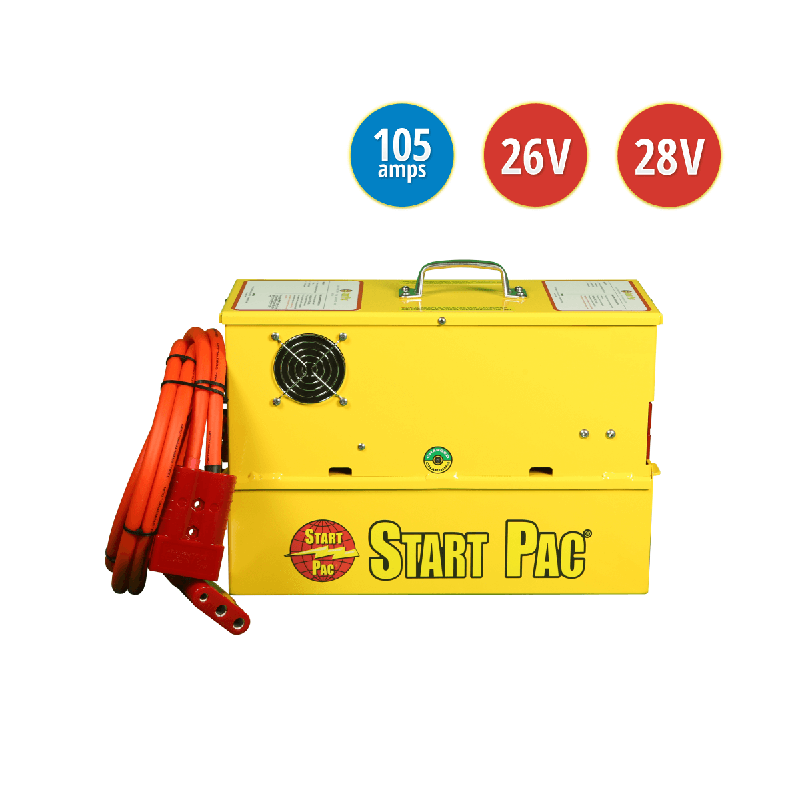

Start Pac Compact 26V & 28V Aircraft Micro GPU™ – Model Super Pac™ 2326QC / 105
$5092.00/Each
Part# 11-20575
MFR Model# SUPERPAC 2326QC/105
MFR Model# SUPERPAC 2326QC/105
FREE Shipping
- JUMP TO
- Overview
- Features
- Specifications
- Reviews
- Q&A
Overview
|
This full 26V Micro GPU will provide better starts than the onboard battery on all electrically started turbine engines, as well as 105A continuous power for powering up aircraft systems.
The environmentally responsible low VOC powder coating protects the case from wear and poor weather conditions These units come standard with the QC trolley. Still portable they can be used at home base and in the field and are an ideal alternative to larger traditional GPUs. Certain aircraft will allow the ship’s generator to backcharge a GPU. In this manner, the START PAC® unit can be recharged in the field without an AC source indefinitely. Model: SUPER PAC™ 2326QC/105 – micro GPU Please Note: This unit is not designed for battery charging. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Compact and lightweight
- Air portable/carry on START PAC® for whenever power is needed
- No duty cycle, clean continuous power
- Complete all-in-one unit is supplied with built-in smart float type chargers for faster recharge, trolley, power plug and7ft/2.1m aircraft cables
- Integrated LED charge indicator
- Cold resistant, valve regulated high amperage output lead acid batteries
- Powerful, sealed cells non-hazardous battery pack, can be used in any position
- Maintenance free
- Nontoxic, non-spillable and recyclable batteries
- Resistant aluminum case with environmentally friendly, low VOC durable powder coat finish, easy to handle, built for heavy duty usage
- PatentedQuickChangedesign:lessthanoneminutebatterychangeforeasyreplacement
- Integrated Voltmeter
Specifications
| Battery type | Lead acid |
|---|---|
| Voltage | 26 VDC |
| Peak Current | 2300 A |
| Capacity @10 Amp Rate | 28 Ah |
| Charger type | Built in |
| Recharge time range | Between 1 and 4 hours |
| Maximum Continuous Current output | 105 |
| DC voltage output | 28.5 VDC |
| AC voltage input *Must be specified on order | 110 VAC or 220 VAC* |
| AC current input at maximum DC power output | 15A @220VAC |
| Phase | Single |
| Forced air-cooling | Yes |
| Over current protection | Yes |
| Over voltage protection | Yes |
| Over temperature protection | Yes |
| Complete Weight | 79lbs / 35kg |
| Dimensions - Length x Width x Height | 19.2” x 7.5” x 14” 49 x 19 x 36 cm |
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
